SAL Peripheral electrical pumps

These peripheral electrical pumps are made to reach a high pressure, even, with a relative small motor. Thanks to their reduced dimensions, they're particulary suitable to be set on apparatus and machines to increase pressure, cooling of temperatures. Easy to be examined, there's the possibility to repair the pump and the motor separatly. The pumping part can turned 90 deg. CW or 90 deg. CCW. For the self-priming type SAL 35 this operation is not possible. These pumps are made to handle clean liquids only, chemically non abrasive liquids, and without solids. Suitable to operate continous service (ES 100%). Maximum numbers if intervention 5/min or 40/h. Operating temperature from -20°C up to +60°C





Download PDF catalog Downloadelectrical periheral pumps type SAL

Selbstansaugende Messing Peripheralradpumpe

Materials
- Impeller, pump body and wear plate in brass
- Stainless steel shaft INOX AISI420 (x30 CR12)
- Mechanical seal in PTFE - ALLUMINA - NBR (Viton on request)
- Ball bearing of first quality
- Hose connector in brass on request

Execution
- With fan MEC56
- Without connection box and with separated capacitor
- With connection box and built-in capacitor.
- Built-in overload protection that can be disconnected

Motor
- 2-pole induction motor, singlephase: 110V 50Hz - 230V 50/60Hz with the same pump / 3-phase: 400V 50Hz
- Other tensions and frequences on request
- Isolation class F / Protection IP44


Performance n ≈ 2800 1/min

3~ 230V 400V 1~ 230V P1 P2 Q
m³/h
0,0 0,06 0,12 0,18 0,24 0,3 0,36 0,42 0,48
A A A kW kW l/min 0 1 2 3 4 5 6 7 8
SAL 30     SAL 30   0,25   H
(m)
30 28 25 22 19 16 14 11 7
SAL 35     SAL 35   0,30   35 30 27 24 21 17 15 12 8
SAL 40     SAL 40   0,30   40 35 32 28 24 21 17 13 9
P2 MotorRated Power. At 60Hz the height increases of 20% about, all other characteristics remain unchanged

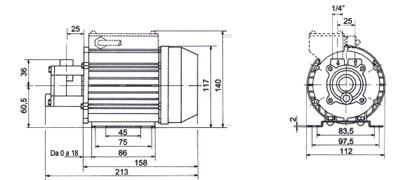

Dimensions and weights

Messing Peripheralpumpen Typ SAL
Typ DN1 DN2 mm kg
ISO 228 Länge Höhe Breite
SAL 30 G ¼ G ¼ 213 137 112 3,85
SAL 35 G ¼ G ¼ 213 137 112 4,0
SAL 40 G ¼ G ¼ 213 137 112 4,0

Subject to change!
