series E/F Stainless steel gear pumps with flange

Self-priming Stainless steel gear flange-pumps. Suction- and pressure-connections Whitworth pipe threads - opposite 180°.
E/F Pumps with stainless-steel-gears (Pumps are completely painted).
E/F -PEEK Pumps Gears made of PEEK (Polyetheretherketon).

Applications
The Stainless-steel gear flange-Pumps for industrial applications:
Dosing-systems, coolant feed, heat transfer, test bench, mechanical engineering and more.

Liquids
Gear-Pumps Series E/F for special and corrosive liquids, Emulsions, oils and fats. Non-explosive Liquids, not corrosive against Pump Materials, without any solids.
E/F Pumpen for lubricating Liquids
E/F -PEEK Pumpen also for non-lubricating Liquids





Download PDF catalog Download Stailess steel - flange-gear-pumps E/F

Zahnradflanschpumpen Baureihe F

Operating conditions
Liquid temperature: up to +200°C
Standard direction of power shaft: right.
Left or right/left rotation on inquiry

Drives
For example: Hydraulic motor, electric motor, drives without axial / radial forces on the drive shaft

Zahnradflanschpumpen Drehrichtung Baureihe F

Materials

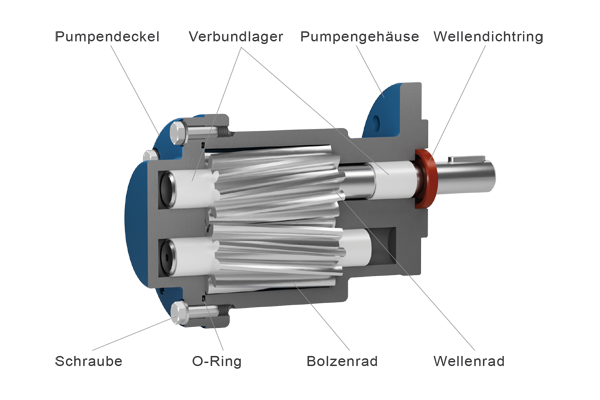

Zahnradflanschpumpen Schnittzeichnung Baureihe F
components E/F E/F -PEEK
casing and cover Stainless steel 1.4571 Stainless steel 1.4571
shaft Stainless steel 1.4571 Stainless steel 1.4571
gears Stainless steel 1.4571 PEEK
bearing bushes Stainless steel composite bearings Stainless steel composite bearings
shaft seal Sealing Ring NBR
( FPM, PTFE, GLRD, packing gland u.a.)

E/F1.. Performance n ≈ 1450 1/min

type cm³/U pressure
bar 5 10 15 20 30
capacity / drive power(kW*)
E/F 15 0,85 l/min 1,15 1,10 1,05 1,00 0,90
kW* 0,014 0,027 0,041 0,055 0,080
E/F 17 1,2 l/min 1,60 1,55 1,50 1,40 1,30
kW* 0,019 0,038 0,057 0,076 0,11
E/F 110 1,8 l/min 2,30 2,25 2,20 2,10 2,00
kW* 0,027 0,055 0,082 0,11 0,16
Valid for hydraulic oil with 35 mm²/s at 50 °C Oil-Speed: max. 1,5 m/s suction side, max. 4,5 m/s pressure side
Tolerance of capacity: +/- 3% * kW = required drive power in kW (without dissipation)
special design (on request)

Dimensions and weight

E/F15 - E/F17

Zahnradflanschpumpe Amessungen F1-017-F17

weight: 1,5 kg

E/F110

Zahnradflanschpumpe Amessungen F110

weight: 1,5 kg

E/F2.. Performance n ≈ 1450 1/min

type cm³/U pressure
bar 5 10 15 20 30 40 50
capacity / drive power(kW*)
E/F 210 E/F 210 PEEK 2,3 l/min 3,00 2,95 2,90 2,80 2,70 2,60 2,40
kW* 0,036 0,072 0,11 0,14 0,21 0,29 0,36
E/F 214 E/F 214 PEEK 3,2 l/min 4,50 4,45 4,40 4,30 4,20 4,10 3,90
kW* 0,054 0,11 0,16 0,21 0,32 0,43 0,54
E/F 219 E/F 219 PEEK 4,3 l/min 6,00 5,95 5,90 5,85 5,80 5,70 5,50
kW* 0,072 0,15 0,22 0,29 0,44 0,58 0,73
Valid for hydraulic oil with 35 mm²/s at 50 °C Oil-Speed: max. 1,5 m/s suction side, max. 4,5 m/s pressure side
Tolerance of capacity: +/- 3% * kW = required drive power in kW (without dissipation)
special design (on request)

Dimensions and weight

E/F210 - E/F214

Zahnradflanschpumpe Amessungen F210-F214

weight: 2,5 kg

E/F219

Zahnradflanschpumpe Amessungen F219

weight: 2,5 kg

E/F3.. Performance n ≈ 1450 1/min

type cm³/U pressure
bar 5 10 15 20 30 40 50
capacity / drive power(kW*)
E/F 310 E/F 310 PEEK 5,1 l/min 7,40 7,35 7,30 7,25 7,20 7,10 7,00
kW* 0,09 0,18 0,26 0,35 0,53 0,71 0,88
E/F 314 E/F 314 PEEK 7,1 l/min 10,20 10,15 10,10 10,00 9,90 9,70 9,40
kW* 0,12 0,24 0,37 0,49 0,73 0,97 1,22
E/F 318 E/F 318 PEEK 9,1 l/min 13,20 13,10 13,00 12,80 12,60 12,40 12,10
kW* 0,16 0,31 0,47 0,63 0,94 1,26 1,57
E/F 323 E/F 323 PEEK 11,7 l/min 16,70 16,60 16,50 16,40 16,20 16,00 15,60
kW* 0,20 0,40 0,60 0,80 1,20 1,59 1,99
E/F 328 E/F 328 PEEK 14,1 l/min 20,30 20,20 20,10 20,00 19,80 19,60 19,40
kW* 0,24 0,48 0,72 0,96 1,45 1,93 2,41
E/F 333 E/F 333 PEEK 16,7 l/min 24,10 24,00 23,90 23,80 23,60 23,40 23,20
kW* 0,28 0,57 0,85 1,14 1,70 2,27 2,84
Valid for hydraulic oil with 35 mm²/s at 50 °C Oil-Speed: max. 1,5 m/s suction side, max. 4,5 m/s pressure side
Tolerance of capacity: +/- 3% * kW = required drive power in kW (without dissipation)
special design (on request)

Dimensions and weight

E/F310 - E/F323

Zahnradflanschpumpe Amessungen F310-F328

weight: 4,3 kg

E/F328 - E/F333

Zahnradflanschpumpe Amessungen F328-F333

weight: 4,5 kg
