Series LZ Slow running Gear Pumps

for viscid liquids
Type LZ 80 and LZ 120

Slow running gear pumps are suitable for thick Liquids with a for delivering certain degree of lubricity. The material must not contain any hard substances. The driving shaft is sealed driving shaft with a teflon packing box. The driving drives by a suitable geared motor. Radial or axial force can not be picked up by the shaft. The sense of rotation is either right or left. The shaft is running in friction bearings. The housing is made of GG25. The cog-wheels and shafts are made of hardened and grounded steel.

Specification of Performance
of slow running cog-wheel pumps Typ: LZ 80 and LZ 120.
Revolutions max. 500 Min-¹

Example of liquids suitable for transport
Slow running gear pumps are used as Bitumen pump, molasse Pumps and Pumps for Thick Liquids.

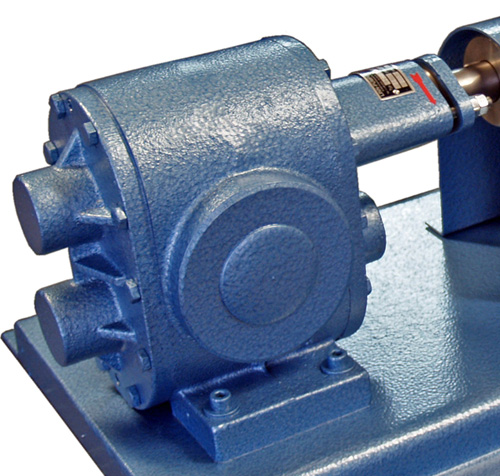

Slow running gear pumps Series LZ

LZ-GM slow running Gear Pumps with base plate and motor

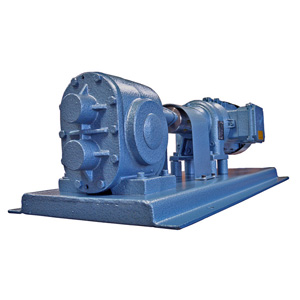

slow running gear pump with motor on a base plate

Performance

   100 min-¹  200 min-¹
 Pumpen Nr.
pump number
 Saug- und
pressureanschluß
suction-pressure-
connection
 cm³/U
cm³/r
 bar  l/min.  Viskosität (mm²/s)
Viscosity (mm²/s)
 l/min.  Viskosität (mm²/s)
Viscosity (mm²/s)
 80  800  4000  10000  80  800  4000  10000
 kW  kW
LZ 80 G1½" 210 2 21 0,2 0,4 0,7 0,9 42 0,4 0,7 1,4 1,8
LZ 80 G1½" 210 4 21 0,3 0,5 0,8 1,1 42 0,6 0,9 1,7 2,0
LZ 80 G1½" 210 6 21 0,4 0,6 0,9 1,3 42 0,9 1,2 1,9 2,4
LZ 120 G2" 320 2 32 0,3 0,5 0,9 1,2 64 0,7 1,0 1,9 2,5
LZ 120 G2" 320 4 32 0,5 0,7 1,1 1,5 64 1,0 1,5 2,1 3,0
LZ 120 G2" 320 6 32 0,7 0,9 1,3 1,7 64 1,5 1,8 2,7 3,5



   300 min-¹  400 min-¹
 Pumpen Nr.
pump number
 Saug- und
pressureanschluß
suction-pressure-
connection
 cm³/U
cm³/r
 bar  l/min.  Viskosität (mm²/s)
Viscosity (mm²/s)
 l/min.  Viskosität (mm²/s)
Viscosity (mm²/s)
 80  800  4000  10000  80  800  4000
 kW  kW
LZ 80 G1½" 210 2 63 0,5 1,1 1,9 2,9 84 0,6 1,5 3,3
LZ 80 G1½" 210 4 63 0,9 1,5 2,7 3,3 84 1,1 2,0 4,0
LZ 80 G1½" 210 6 63 1,1 1,9 2,9 3,7 84 1,7 2,5 4,8
LZ 120 G2" 320 2 96 0,8 1,5 3,0 4,0 128 1,0 1,5 4,5
LZ 120 G2" 320 4 96 1,2 2,0 3,6 4,5 128 1,5 3,0 5,5
LZ 120 G2" 320 6 96 1,6 2,5 4,0 5,1 128 2,1 3,5 6,8

Valid for hydraulic oil with 35 mm²/s at 50 °C

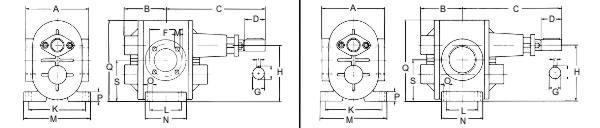

Dimensions and weight

 Typ
Type
 Saug- und
pressureanschluß
suction- pressure-
connection
 Maße / Dimensions  weight kg
Weight kg
 A  B  C  D  E  G  H  I  J  K  L  M  N  O  P  Q  R
LZ 80 R1½" 155 90 235 45 - 28 145 8 31,5 165 50 195 75 13,5 25 210 105 20
LZ 120 R2" 165 110 255 45 - 28 145 8 31,5 165 80 195 105 13,5 25 210 105 30



 Typ
Type
 A  B  C  F  R  Schrauben
Screws
 O-Ring  M
LZ 80 - 28 80 80 1 ½" M 10 x 30 55 x 3 M 10 x 15
LZ 120 115 28 - 92 2" M 10 x 30 67 x 3 M 10 x 15

Subject to change!
