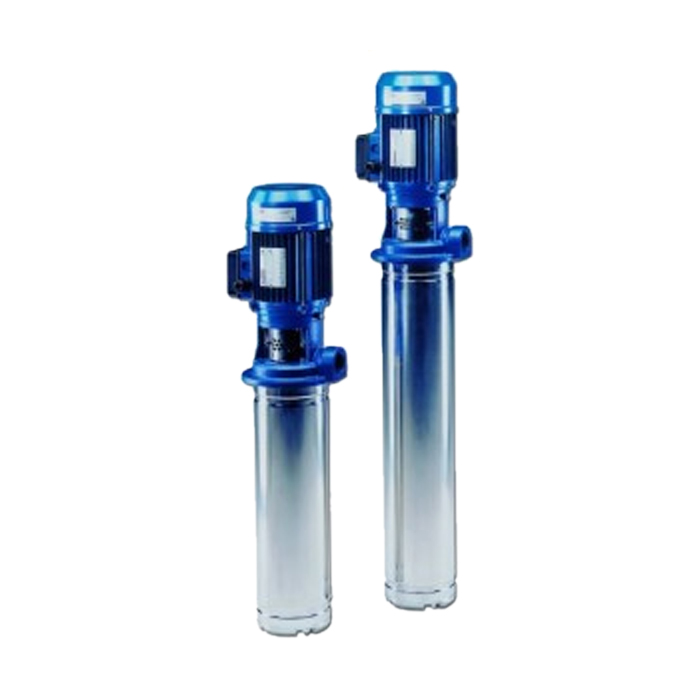

Multi-Stage Stainless steel- Vertical pump with submersible body Series SVI

Series SVI2..E Multi-Stage Stainless steel-Vertical pump with submersible body

CHARACTERISTICS OF SVI 2 Series (Versions E, EN)

• Vertical pump with submersible body with impellers, diffusers, outer sleeve, suction base and filter made entirely of stainless steel. Adapter with delivery port in cast iron.
• "N" version made entirely of AISI 316 stainless steel.
• Motor with special shaft extension.
• Standard version for temperatures ranging from -10°C to +60°C.

Material

SVI 2, 4 (Versions E)

Edelstahl Eintauchpumpen Typ SVI2 / 4 E, EN Schnittzeichnung

Nr.	Components	Material	REFERENCE STANDARDS
Nr.	Components	Material	EUROPE	USA
1	Adapter	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
2	Laudrad	Stainless steel	EN 10088-1-X5CrNi18-10 (1,4301)	AISI 304
3	Diffuser	Stainless steel	EN 10088-1-X5CrNi18-10 (1,4301)	AISI 304
4	Outer sleeve	Stainless steel	EN10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
5	Shaft	Stainless steel	EN 10088-1-X5CrNi18-10 (1,4301)	AISI 304
6	Suction base	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1,4408)	ASTM CF8M (AISI 316 cast)
7	Strainer	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
8	Mechanical seal	Ceramic /Carbon/PFM
9	Elastomers	FPM
10	Shaft sleeve	Tungsten carbide
11	Bushing	Ceramic
12	Tie rods	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
13	Screws	Stainless steel	EN 10088-1-X5CrNi18-10 (1,4301)	AISI 304

SVI 2, 4 (Versions EN)

Nr.	Components	Material	REFERENCE STANDARDS
Nr.	Components	Material	EUROPE	USA
1	Adapter	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1,4408)	ASTM CF8M (AISI 316 cast)
2	Laudrad	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
3	Diffuser	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
4	Outer sleeve	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
5	Shaft	Duplex-Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
6	Suction base	Cast iron	EN 10213-4-GX5CrNiMo19-11-2 (1,4408)	ASTM CF8M (AISI 316 cast)
7	Strainer	Technopolymer PPS	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
8	Mechanical seal	Ceramic /Carbon/PFM
9	Elastomers	FPM
10	Shaft sleeve	Tungsten carbide
11	Bushing	Ceramic
12	Tie rods	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
13	Screws	Stainless steel	EN 10088-1-X5CrNi18-10 (1,4301)	AISI 304

Performance n ≈ 2900 1/min

Pump type	Rated Power		Q=Delivery
			l/min 0	20	30	40	50	60	70
			m³/h 0	1,2	1,8	2,4	3	3,6	4,2
	kW	HP	H=Total head in metres of column of water
SVI 201E	0,37	0,5	10,6	9,2	8,4	7,5	6,5	5,2	3,7
SVI 202E	0,37	0,5	21,2	18,4	16,8	15	12,9	10,4	7,4
SVI 203E	0,45	0,6	31,8	27,6	25,3	22,5	19,4	15,6	11,1
SVI 204E	0,55	0,75	42,4	36,9	33,7	30,1	25,8	20,8	14,8
SVI 205E	0,75	1	53	46,1	42,1	37,6	32,3	26	18,6
SVI 206E	0,75	1	63,7	55,3	50,5	45,1	38,7	31,2	22,3
SVI 207E	0,9	1,2	74,3	64,5	58,9	52,6	45,2	36,4	26

Dimensions and weight

Vertikale mehrstufige Edelstahl Kreiselpumpen Baureihe 1SV Abmessungen

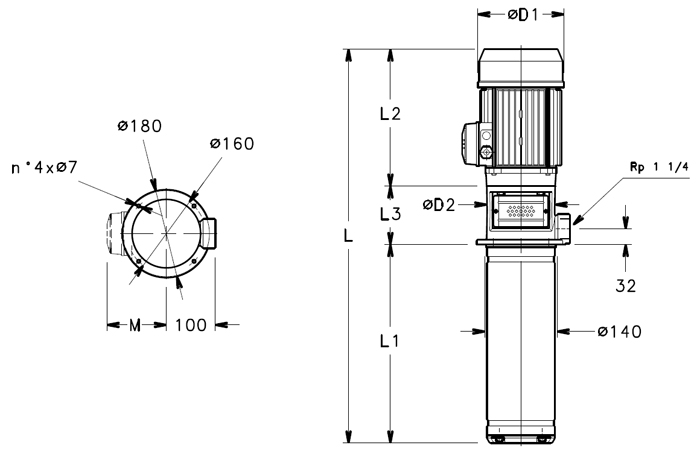

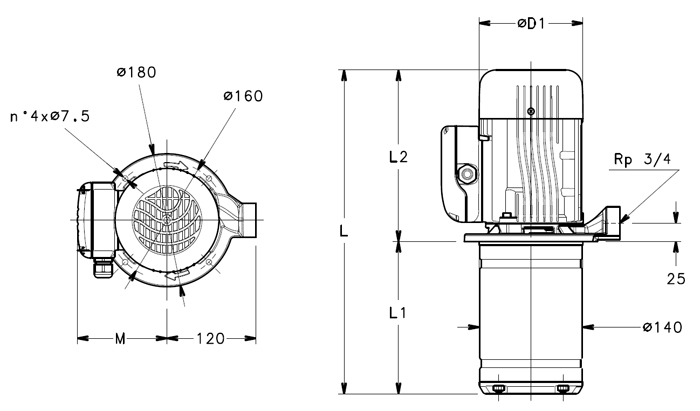

Pump type	Motor		Dimensions (mm)					weight
Pump type	kW	size	L	L1	L2	M	D1	kg
SVI201/03E03T	0,37	63	324	106	218	111	120	8,8
SVI202/03E03T	0,37	63	324	106	218	111	120	8,9
SVI203/03E04T	0,45	63	324	106	218	111	120	9,8
SVI204/04E05T	0,55	63	349	131	218	111	120	10,6
SVI205/05E07T	0,75	71	388	156	232	121	140	13,5
SVI206/06E07T	0,75	71	413	181	232	121	140	13,9
SVI207/07E09T	0,9	71	438	206	232	121	140	15

Pump type	Motor		L2 mm	N. of stages
	kW	size		3	4	5	6	7	8
	kW	size		L1 Shank lengths in mm
SVI201/..	0,37	63	218	106	131	156	181	206	231
SVI202/..	0,37	63	218	106	131	156	181	206	231
SVI203/..	0,45	63	218	106	131	156	181	206	231
SVI204/..	0,55	63	218		131	156	181	206	231
SVI205/..	0,75	71	232			156	181	206	231
SVI206/..	0,75	71	232				181	206	231
SVI207/..	0,9	71	232					206	231

Series SVI4..E Multi-Stage Stainless steel-Vertical pump with submersible body

Characteristics of Series SVI 4 (Versions E, EN)

Material

SVI 4 (Versions E)

Nr.	Components	Material	REFERENCE STANDARDS
Nr.	Components	Material	EUROPE	USA
1	Adapter	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
2	Laudrad	Stainless steel	EN 10088-1-X5CrNi18-10 (1,4301)	AISI 304
3	Diffuser	Stainless steel	EN 10088-1-X5CrNi18-10 (1,4301)	AISI 304
4	Outer sleeve	Stainless steel	EN10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
5	Shaft	Stainless steel	EN 10088-1-X5CrNi18-10 (1,4301)	AISI 304
6	Suction base	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1,4408)	ASTM CF8M (AISI 316 cast)
7	Strainer	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
8	Mechanical seal	Ceramic /Carbon/PFM
9	Elastomers	FPM
10	Shaft sleeve	Tungsten carbide
11	Bushing	Ceramic
12	Tie rods	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
13	Screws	Stainless steel	EN 10088-1-X5CrNi18-10 (1,4301)	AISI 304

SVI 4 (Versions EN)

Nr.	Components	Material	REFERENCE STANDARDS
Nr.	Components	Material	EUROPE	USA
1	Adapter	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1,4408)	ASTM CF8M (AISI 316 cast)
2	Laudrad	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
3	Diffuser	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
4	Outer sleeve	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
5	Shaft	Duplex-Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
6	Suction base	Cast iron	EN 10213-4-GX5CrNiMo19-11-2 (1,4408)	ASTM CF8M (AISI 316 cast)
7	Strainer	Technopolymer PPS	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
8	Mechanical seal	Ceramic /Carbon/PFM
9	Elastomers	FPM
10	Shaft sleeve	Tungsten carbide
11	Bushing	Ceramic
12	Tie rods	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
13	Screws	Stainless steel	EN 10088-1-X5CrNi18-10 (1,4301)	AISI 304

Performance n ≈ 2900 1/min

Pump type	Rated Power		Q=Delivery
			l/min 0	40	50	60	70	80	90	100	110	120
			m³/h 0	2,4	3	3,6	4,2	4,8	5,4	6	6,6	7,2
	kW	HP	H=Total head in metres of column of water
SVI 401E	0,37	0,5	9,5	8	7,6	7,2	6,7	6,2	5,6	4,9	4,2	3,4
SVI 402E	0,37	0,5	19	16,1	15,3	14,4	13,4	12,3	11,2	9,9	8,4	6,8
SVI 403E	0,45	0,6	28,5	24,1	22,9	21,5	20,1	18,5	16,7	14,8	12,6	10,2
SVI 404E	0,55	0,75	38	32,1	30,5	28,7	26,8	24,7	22,3	19,7	16,8	13,6
SVI 405E	0,75	1	47,5	40,2	38,1	35,9	33,5	30,8	27,9	24,6	21	17,1
SVI 406E	0,9	1,2	57	48,2	45,8	43,1	40,2	37	33,5	29,6	25,3	20,5

Dimensions and weight

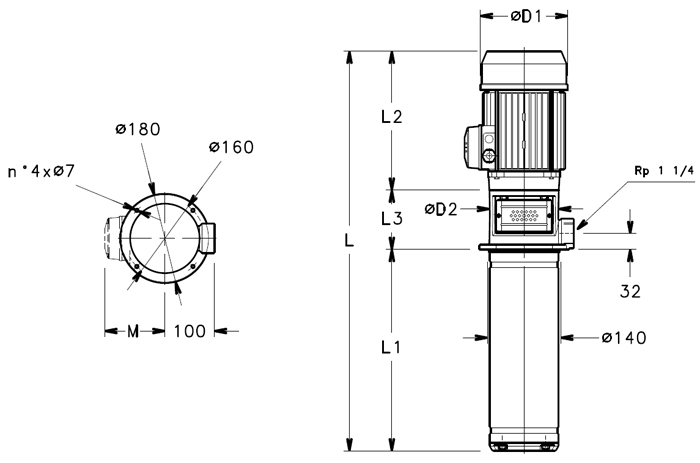

Pump type	Motor		Dimensions (mm)					weight
Pump type	kW	size	L	L1	L2	M	D1	kg
SVI401/03E03T	0,37	63	324	106	218	111	120	8,8
SVI402/03E03T	0,37	63	324	106	218	111	120	8,9
SVI403/03E04T	0,45	63	324	106	218	111	120	9,8
SVI404/04E05T	0,55	63	349	131	218	111	120	10,6
SVI405/05E07T	0,75	71	388	156	232	121	140	13,5
SVI406/06E09T	0,9	71	413	181	232	121	140	14,6

Pump type	Motor		L2 mm	N. of stages
	kW	size		3	4	5	6	7	8
	kW	size		L1 Shank lengths in mm
SVI401/..	0,37	63	218	106	131	156	181	206	231
SVI402/..	0,37	63	218	106	131	156	181	206	231
SVI403/..	0,45	63	218	106	131	156	181	206	231
SVI404/..	0,55	63	218		131	156	181	206	231
SVI405/..	0,75	71	232			156	181	206	231
SVI406/..	0,99	71	232				181	206	231

Series SVI2..S (N) Multi-Stage Stainless steel-Vertical pump with submersible body

Characteristics of Series SVI 2 (Versions S, N)

• Vertical pump with submersible body.
• "S" version with standard motor; impellers, diffusers, outer sleeve, suction base and filter made entirely of stainless steel. Adapter with delivery port in cast iron.
• "N" version with standard motor, made entirely of AISI 316 stainless steel.
• Reduced axial thrusts enable the use of standard motors that are easily found in the market.
• Mechanical seal according to EN 12756 (ex DIN 24960) e ISO 3069.
• Standard version for temperatures ranging from -10°C to +90°C.

Material

SVI 2 (Versions S)

Nr.	Components	Material	REFERENCE STANDARDS
Nr.	Components	Material	EUROPE	*USA*
1	Adapter	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
2	Laudrad	Stainless steel	EN 10088-1-X5CrNi18-10 (1,4301)	AISI 304
3	Diffuser	Stainless steel
4	Outer sleeve	Stainless steel	EN10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
5	Shaft	Stainless steel	EN 10088-1-X5CrNi18-10 (1,4301)	AISI 304
6	Suction base	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1,4408)	ASTM CF8M AISI 316 cast
7	Strainer	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
8	Coupling (- 4 kW)	Aluminium	EN 1706-AC-AlSi11Cu2 (Fe) (AC46100)
8	Coupling (ab 4 kW)	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
9	Mechanical seal	Silicon carbide/Carbon/FPM
10	Elastomers	FPM
11	Coupling protection	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
12	Shaft sleeve	Tungsten carbide
13	Bushing	Ceramic
14	Tie rods	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
15	Screws	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316

SVI 2 (Versions N)

Nr.	Components	Material	REFERENCE STANDARDS
Nr.	Components	Material	EUROPE	USA
1	Adapter	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1,4408)	ASTM CF8M (AISI 316 cast)
2	Laudrad	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
3	Diffuser	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
4	Outer sleeve	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
5	Shaft	Duplex-Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
6	Suction base	Cast iron	EN 10213-4-GX5CrNiMo19-11-2 (1,4408)	ASTM CF8M (AISI 316 cast)
7	Strainer	Technopolymer PPS	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
8	Coupling (- 4 kW)	Aluminium	EN 1706-AC-AlSi11Cu2 (Fe) (AC46100)
8	Coupling (ab 4 kW)	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
9	Mechanical seal	Silicon carbide/Carbon/FPM
10	Elastomers	FPM
11	Coupling protection	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
12	Shaft sleeve	Tungsten carbide
13	Bushing	Ceramic
14	Tie rods	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
15	Screws	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316

Performance n ≈ 2900 1/min

Pump type	Rated Power		Q=Delivery
			l/min 0	20	30	40	50	60	70
			m³/h 0	1,2	1,8	2,4	3	3,6	4,2
	kW	HP	H=Total head in metres of column of water
SVI 202S	0,37	0,5	21,4	18,8	17,2	15,4	13,2	10,6	7,4
SVI 203S	0,37	0,5	32,1	28,1	25,8	23,1	19,8	15,9	11,1
SVI 204S	0,55	0,75	42,8	37,5	34,4	30,8	26,4	21,2	14,8
SVI 205S	0,75	1	53,5	46,9	43	38,5	33	26,5	18,6
SVI 206S	0,75	1	64,2	56,3	51,6	46,2	39,6	31,7	22,3
SVI 207S	1,1	1,5	74,9	65,6	60,2	53,9	46,2	37	26
SVI 208S	1,1	1,5	85,6	75	68,8	61,5	52,8	42,3	29,7
SVI 209S	1,1	1,5	96,3	84,4	77,4	69,2	59,4	47,6	33,4
SVI 211S	1,5	2	117,7	103,2	94,6	84,6	72,6	58,2	40,8
SVI 212S	1,5	2	128,4	112,5	103,2	92,3	79,2	63,5	44,5
SVI 214S	2,2	3	149,8	131,3	120,4	107,7	92,5	74,1	52
SVI 216S	2,2	3	171,2	150,1	137,7	123,1	105,7	84,7	59,4
SVI 218S	2,2	3	192,6	168,8	154,9	138,5	118,9	95,2	66,8
SVI 220S	3	4	214	187,6	172,1	153,9	132,1	105,8	74,2
SVI 222S	3	4	235,4	206,3	189,3	169,2	145,3	116,4	81,7
SVI 224S	3	4	256,8	225,1	206,5	184,6	158,5	127	89,1

Dimensions and weight

Pump type	Motor		Dimensions (mm)							weight
Pump type	kW	size	L	L1	L2	L3	M	D1	D2	kg
SVI202/02S03T	0,37	71	416	107	209	100	111	120	105	14
SVI203/03S03T	0,37	71	441	132	209	100	111	120	105	14
SVI204/04S05T	0,55	71	488	157	231	100	121	140	105	15
SVI205/05S07T	0,75	80	518	182	226	110	121	140	120	18
SVI206/06S07T	0,75	80	543	207	226	110	121	140	120	18
SVI207/07S11T	1,1	80	604	231	263	110	129	155	120	19
SVI208/08S11T	1,1	80	629	256	263	110	129	155	120	19
SVI209/09S11T	1,1	80	654	281	263	110	129	155	120	20
SVI211/11S15T	1,5	90	714	331	263	120	129	155	140	25
SVI212/12S15T	1,5	90	739	356	263	120	129	155	140	25
SVI214/14S22T	2,2	90	789	406	263	120	129	155	140	27
SVI216/16S22T	2,2	90	839	456	263	120	129	155	140	28
SVI218/18S22T	2,2	90	889	506	263	120	129	155	140	29
SVI220/20S30T	3	100	984	556	298	130	134	174	160	35
SVI222/22S30T	3	100	1034	606	298	130	134	174	160	35
SVI224/24S30T	3	100	1084	656	298	130	134	174	160	36

Pump type	Motor		L2+L3	N. of stages
	kW	size	mm	2	3	4	5	6	7	8	9	11	12	13	14	15	16	18	20	22	24
	kW	size	mm	L1 Shank lengths in mm
SVI202/..	0,37	71	309	107	132	157	182	207	231	256	281	331	356	381	406	431	456	506	556	606	656
SVI203/..	0,37	71	309		132	157	182	207	231	256	281	331	356	381	406	431	456	506	556	606	656
SVI204/..	0,55	71	331			157	182	207	231	256	281	331	356	381	406	431	456	506	556	606	656
SVI205/..	0,75	80	336				182	207	231	256	281	331	356	381	406	431	456	506	556	606	656
SVI206/..	0,75	80	336					207	231	256	281	331	356	381	406	431	456	506	556	606	656
SVI207/..	1,1	80	373						231	256	281	331	356	381	406	431	456	506	556	606	656
SVI208/..	1,1	80	373							256	281	331	356	381	406	431	456	506	556	606	656
SVI209/..	1,1	80	373								281	331	356	381	406	431	456	506	556	606	656
SVI211/..	1,5	90	383									331	356	381	406	431	456	506	556	606	656
SVI212/..	1,5	90	383										356	381	406	431	456	506	556	606	656
SVI214/..	2,2	90	383												406	431	456	506	556	606	656
SVI216/..	2,2	90	383														456	506	556	606	656
SVI218/..	2,2	90	383															506	556	606	656
SVI220/..	3	100	428																556	606	656
SVI222/..	3	100	428																	606	656
SV224/..	3	100	428																		656

Series SVI4..S (N) Multi-Stage Stainless steel-Vertical pump with submersible body

Characteristics of Series SVI 4 (Versions S, N)

Material

SVI 4 (Versions S)

Nr.	Components	Material	REFERENCE STANDARDS
Nr.	Components	Material	EUROPE	*USA*
1	Adapter	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
2	Laudrad	Stainless steel	EN 10088-1-X5CrNi18-10 (1,4301)	AISI 304
3	Diffuser	Stainless steel
4	Outer sleeve	Stainless steel	EN10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
5	Shaft	Stainless steel	EN 10088-1-X5CrNi18-10 (1,4301)	AISI 304
6	Suction base	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1,4408)	ASTM CF8M AISI 316 cast
7	Strainer	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
8	Coupling (- 4 kW)	Aluminium	EN 1706-AC-AlSi11Cu2 (Fe) (AC46100)
8	Coupling (ab 4 kW)	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
9	Mechanical seal	Silicon carbide/Carbon/FPM
10	Elastomers	FPM
11	Coupling protection	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
12	Shaft sleeve	Tungsten carbide
13	Bushing	Ceramic
14	Tie rods	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
15	Screws	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316

SVI 4 (Versions N)

Nr.	Components	Material	REFERENCE STANDARDS
Nr.	Components	Material	EUROPE	USA
1	Adapter	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1,4408)	ASTM CF8M (AISI 316 cast)
2	Laudrad	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
3	Diffuser	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
4	Outer sleeve	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
5	Shaft	Duplex-Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
6	Suction base	Cast iron	EN 10213-4-GX5CrNiMo19-11-2 (1,4408)	ASTM CF8M (AISI 316 cast)
7	Strainer	Technopolymer PPS	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
8	Coupling (- 4 kW)	Aluminium	EN 1706-AC-AlSi11Cu2 (Fe) (AC46100)
8	Coupling (ab 4 kW)	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
9	Mechanical seal	Silicon carbide/Carbon/FPM
10	Elastomers	FPM
11	Coupling protection	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
12	Shaft sleeve	Tungsten carbide
13	Bushing	Ceramic
14	Tie rods	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
15	Screws	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316

Performance n ≈ 2900 1/min

Pump type	Motor power		Q=Delivery
			l/min 0	40	50	60	70	80	90	100	110	120
			m³/h 0	2,4	3	3,6	4,2	4,8	5,4	6	6,6	7,2
	kW	HP	H=Total head in metres of column of water
SVI 402S	0,37	0,5	19,3	16,8	16	15,2	14,3	13,2	12,1	10,8	9,4	7,9
SVI 403S	0,55	0,75	28,9	25,2	24	22,8	21,4	19,8	18,1	16,2	14,1	11,8
SVI 404S	0,75	1	38,5	33,6	32	30,4	28,5	26,5	24,2	21,6	18,9	15,8
SVI 405S	1,1	1,5	48,2	42	40,1	38	35,6	33,1	30,2	27,1	23,6	19,7
SVI 406S	1,1	1,5	57,8	50,4	48,1	45,6	42,8	39,7	36,3	32,5	28,3	23,7
SVI 407S	1,1	1,5	67,5	58,7	56,1	53,1	49,9	46,3	42,3	37,9	33	27,6
SVI 408S	1,5	2	77,1	67,1	64,1	60,7	57	52,9	48,3	43,3	37,7	31,5
SVI 409S	1,5	2	86,7	75,5	72,1	68,3	64,2	59,5	54,4	48,7	42,4	35,5
SVI 411S	2,2	3	106	92,3	88,1	83,5	78,4	72,8	66,5	59,5	51,9	43,4
SVI 413S	2,2	3	125,3	109,1	104,2	98,7	92,7	86	78,6	70,4	61,3	51,3
SVI 414S	3	4	134,9	117,5	112,2	106,3	99,8	92,6	84,6	75,8	66	55,2
SVI 416S	3	4	154,2	134,3	128,2	121,5	114,1	105,8	96,7	86,6	75,4	63,1
SVI 418S	3	4	173,5	151,1	144,2	136,7	128,3	119	108,8	97,4	84,8	71
SVI 420S	4	5,5	192,7	167,9	160,2	151,8	142,6	132,3	120,9	108,2	94,3	78,9
SVI 422S	4	5,5	212	184,6	176,3	167	156,8	145,5	133	119,1	103,7	86,7
SVI 424S	4	5,5	231,3	201,4	192,3	182,2	171,1	158,7	145	129,9	113,1	94,6

Dimensions and weight

Mehrstufige Edelstahl Eintauchpumpe Baureihe SVI4 Abmessungen

Pump type	Motor		Dimensions (mm)							weight
Pump type	kW	size	L	L1	L2	L3	M	D1	D2	kg
SVI402/02S03T	0,37	71	416	107	209	100	111	120	105	14
SVI403/03S05T	0,55	71	463	132	231	100	111	140	105	14
SVI404/04S07T	0,75	80	493	157	226	110	121	140	120	17
SVI405/05S11T	1,1	80	555	182	263	110	121	155	120	18
SVI406/06S11T	1,1	80	580	207	263	110	121	155	120	18
SVI407/07S11T	1,1	80	604	231	263	110	129	155	120	19
SVI408/08S15T	1,5	90	639	256	263	120	129	155	140	24
SVI409/09S15T	1,5	90	664	281	263	120	129	155	140	24
SVI411/11S22T	2,2	90	714	331	263	120	129	155	140	26
SVI413/13S22T	2,2	90	764	381	263	120	129	155	140	27
SVI414/14S30T	3	100	834	406	298	130	134	174	160	35
SVI416/16S30T	3	100	884	456	298	130	134	174	160	35
SVI418/18S30T	3	100	934	506	298	130	134	174	160	35
SVI420/20S40T	4	112	1005	556	319	130	154	197	160	51
SVI422/22S40T	4	112	1055	606	319	130	154	197	160	51
SVI424/24S40T	4	112	1105	656	319	130	154	197	160	52

Pump type	Motor		L2+L3	N. of stages
	kW	size	mm	2	3	4	5	6	7	8	9	11	12	13	14	15	16	18	20	22	24
	kW	size	mm	L1 Shank lengths in mm
SVI402/..	0,37	71	309	107	132	157	182	207	231	256	281	331	356	381	406	431	456	506	556	606	656
SVI403/..	0,55	71	331		132	157	182	207	231	256	281	331	356	381	406	431	456	506	556	606	656
SVI404/..	0,75	80	336			157	182	207	231	256	281	331	356	381	406	431	456	506	556	606	656
SVI405/..	1,1	80	373				182	207	231	256	281	331	356	381	406	431	456	506	556	606	656
SVI406/..	1,1	80	373					207	231	256	281	331	356	381	406	431	456	506	556	606	656
SVI407/..	1,1	80	373						231	256	281	331	356	381	406	431	456	506	556	606	656
SVI408/..	1,5	90	383							256	281	331	356	381	406	431	456	506	556	606	656
SVI409/..	1,5	90	383								281	331	356	381	406	431	456	506	556	606	656
SVI411/..	2,2	90	383									331	356	381	406	431	456	506	556	606	656
SVI413/..	2,2	90	383											381	406	431	456	506	556	606	656
SVI414/..	3	100	428												406	431	456	506	556	606	656
SVI416/..	3	100	428														456	506	556	606	656
SVI418/..	3	100	428															506	556	606	656
SVI420/..	4	112	449																556	606	656
SVI422/..	4	112	449																	606	656
SVI424/..	4	112	449																		656

Series SVI8..S (N) Multi-Stage Stainless steel-Vertical pump with submersible body

Characteristics of Series SVI 8 (Versions S, N)

Material

SVI 8 (Versions S)

Nr.	Components	Material	REFERENCE STANDARDS
Nr.	Components	Material	EUROPE	*USA*
1	Adapter	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
2	Laudrad	Stainless steel	EN 10088-1-X5CrNi18-10 (1,4301)	AISI 304
3	Diffuser	Stainless steel
4	Outer sleeve	Stainless steel	EN10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
5	Shaft	Stainless steel	EN 10088-1-X5CrNi18-10 (1,4301)	AISI 304
6	Suction base	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1,4408)	ASTM CF8M AISI 316 cast
7	Strainer	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
8	Coupling (- 4 kW)	Aluminium	EN 1706-AC-AlSi11Cu2 (Fe) (AC46100)
8	Coupling (ab 4 kW)	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
9	Mechanical seal	Silicon carbide/Carbon/FPM
10	Elastomers	FPM
11	Coupling protection	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
12	Shaft sleeve	Tungsten carbide
13	Bushing	Ceramic
14	Tie rods	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
15	Screws	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316

SVI 8 (Versions N)

Nr.	Components	Material	REFERENCE STANDARDS
Nr.	Components	Material	EUROPE	USA
1	Adapter	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1,4408)	ASTM CF8M (AISI 316 cast)
2	Laudrad	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
3	Diffuser	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
4	Outer sleeve	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
5	Shaft	Duplex-Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
6	Suction base	Cast iron	EN 10213-4-GX5CrNiMo19-11-2 (1,4408)	ASTM CF8M (AISI 316 cast)
7	Strainer	Technopolymer PPS	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
8	Coupling (- 4 kW)	Aluminium	EN 1706-AC-AlSi11Cu2 (Fe) (AC46100)
8	Coupling (ab 4 kW)	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
9	Mechanical seal	Silicon carbide/Carbon/FPM
10	Elastomers	FPM
11	Coupling protection	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
12	Shaft sleeve	Tungsten carbide
13	Bushing	Ceramic
14	Tie rods	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
15	Screws	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316

Performance n ≈ 2900 1/min

Pump type	Rated Power		Q=Delivery
			l/min 0	100	125	150	175	200	233
			m 3/h 0	6	7,5	9	10,5	12	14
	kW	HP	H=Total head in metres of column of water
SVI 801S	0,75	1	14	12,5	11,8	11	10	8,7	6,5
SVI 802S	1,1	1,5	28	25	23,7	22,1	20	17,4	13
SVI 803S	1,5	2	42	37,5	35,5	33,1	29,9	26	19,4
SVI 804S	2,2	3	56	50	47,4	44,1	39,9	34,7	25,9
SVI 805S	2,2	3	70	62,4	59,2	55,1	49,9	43,4	32,4
SVI 806S	3	4	84	74,9	71,1	66,2	59,9	52,1	38,9
SVI 808S	4	5,5	112	99,9	94,8	88,2	79,9	69,5	51,8
SVI 809S	4	5,5	126	112,4	106,6	99,2	89,8	78,1	58,3
SVI 811S	5,5	7,5	154	137,4	130,3	121,3	109,8	95,5	71,3
SVI 812S	5,5	7,5	168	149,9	142,2	132,3	119,8	104,2	77,8
SVI 814S	7,5	10	196	174,9	165,9	154,4	139,8	121,5	90,7
SVI 816S	7,5	10	224	199,8	189,6	176,4	159,7	138,9	103,7

Dimensions and weight

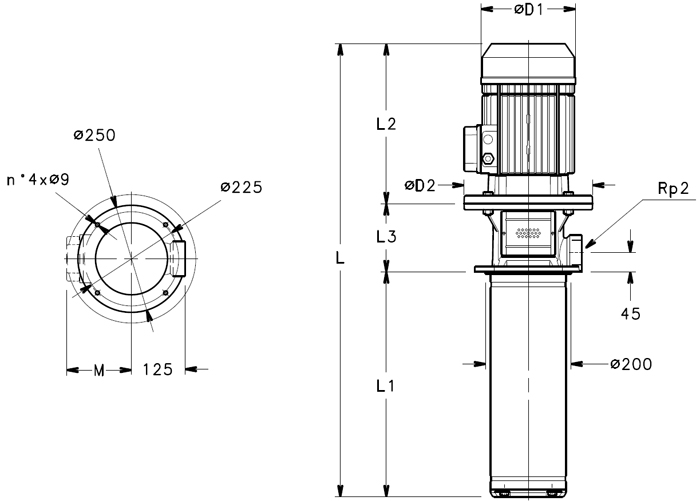

Mehrstufige Edelstahl Eintauchpumpe Baureihe SVI8 Abmessungen

Pump type	Motor		Dimensions (mm)							weight
Pump type	kW	size	L	L1	L2	L3	M	D1	D2	kg
SVI801/02S07T	0,75	80	491	146	226	119	121	140	120	22
SVI802/02S11T	1,1	80	528	146	263	119	129	155	120	23
SVI803/03S15T	1,5	90	576	184	263	129	129	155	140	28
SVI804/04S22T	2,2	90	614	222	263	129	129	155	140	30
SVI805/05S22T	2,2	90	652	260	263	129	129	155	140	31
SVI806/06S30T	3	100	735	298	298	139	134	174	160	40
SVI808/08S40T	4	112	832	374	319	139	154	197	160	57
SVI809/09S40T	4	112	870	412	319	139	154	197	160	58
SVI811/11S55T	5,5	132	1022	488	375	159	168	214	300	69
SVI812/12S55T	5,5	132	1060	526	375	159	168	214	300	70
SVI814/14S75T	7,5	132	1128	602	367	159	191	256	300	88
SVI816/16S75T	7,5	132	1204	678	367	159	191	256	300	89

Pump type	Motor		L2+L3	N. of stages
	kW	size	mm	2	3	4	5	6	7	8	9	11	12	13	14	15	16
	kW	size	mm	L1 Shank lengths in mm
SVI801/..	0,75	80	345	146	184	222	260	298	336	374	412	450	488	526	602	640	678
SVI802/..	1,1	80	382	146	184	222	260	298	336	374	412	450	488	526	602	640	678
SVI803/..	1,5	90	392		184	222	260	298	336	374	412	450	488	526	602	640	678
SVI804/..	2,2	90	392			222	260	298	336	374	412	450	488	526	602	640	678
SVI805/..	2,2	90	392				260	298	336	374	412	450	488	526	602	640	678
SVI806/..	3	100	437					298	336	374	412	450	488	526	602	640	678
SVI808/..	4	112	458							374	412	450	488	526	602	640	678
SVI809/..	4	112	458								412	450	488	526	602	640	678
SVI811/..	5,5	132	534										488	526	602	640	678
SVI812/..	5,5	132	534											526	602	640	678
SVI814/..	7,5	132	526												602	640	678
SVI816/..	7,5	132	526														678

Series SVI16..S (N) Multi-Stage Stainless steel-Vertical pump with submersible body

Characteristics of Series SVI 16 (Versions S, N)

Material

SVI 16 (Versions S)

Nr.	Components	Material	REFERENCE STANDARDS
Nr.	Components	Material	EUROPE	*USA*
1	Adapter	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
2	Laudrad	Stainless steel	EN 10088-1-X5CrNi18-10 (1,4301)	AISI 304
3	Diffuser	Stainless steel
4	Outer sleeve	Stainless steel	EN10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
5	Shaft	Stainless steel	EN 10088-1-X5CrNi18-10 (1,4301)	AISI 304
6	Suction base	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1,4408)	ASTM CF8M AISI 316 cast
7	Strainer	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
8	Coupling (- 4 kW)	Aluminium	EN 1706-AC-AlSi11Cu2 (Fe) (AC46100)
8	Coupling (ab 4 kW)	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
9	Mechanical seal	Silicon carbide/Carbon/FPM
10	Elastomers	FPM
11	Coupling protection	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
12	Shaft sleeve	Tungsten carbide
13	Bushing	Ceramic
14	Tie rods	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
15	Screws	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316

SVI 16 (Versions N)

Nr.	Components	Material	REFERENCE STANDARDS
Nr.	Components	Material	EUROPE	USA
1	Adapter	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1,4408)	ASTM CF8M (AISI 316 cast)
2	Laudrad	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
3	Diffuser	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
4	Outer sleeve	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1,4404)	AISI 316L
5	Shaft	Duplex-Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
6	Suction base	Cast iron	EN 10213-4-GX5CrNiMo19-11-2 (1,4408)	ASTM CF8M (AISI 316 cast)
7	Strainer	Technopolymer PPS	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
8	Coupling (- 4 kW)	Aluminium	EN 1706-AC-AlSi11Cu2 (Fe) (AC46100)
8	Coupling (ab 4 kW)	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
9	Mechanical seal	Silicon carbide/Carbon/FPM
10	Elastomers	FPM
11	Coupling protection	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
12	Shaft sleeve	Tungsten carbide
13	Bushing	Ceramic
14	Tie rods	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316
15	Screws	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1,4401)	AISI 316

Performance n ≈ 2900 1/min

Pump type	Rated Power		Q=Delivery
			l/min 0	150	175	200	233	250	275	300	350	400
			m 3/h 0	9	10,5	12	14	15	16,5	18	21	24
	kW	HP	H=Total head in metres of column of water
SVI 1601S	1,1	1,5	16,9	16	15,6	15,1	14,3	13,8	13	12,1	9,8	6,9
SVI 1602S	2,2	3	33,7	32	31,2	30,2	28,6	27,6	26	24,1	19,6	13,9
SVI 1603S	3	4	50,6	48	46,8	45,3	42,9	41,5	39	36,2	29,4	20,8
SVI 1604S	4	5,5	67,5	64	62,4	60,4	57,2	55,3	52	48,3	39,1	27,7
SVI 1605S	5,5	7,5	84,3	80	78	75,6	71,5	69,1	65	60,3	48,9	34,6
SVI 1606S	5,5	7,5	101,2	96	93,6	90,7	85,8	82,9	78	72,4	58,7	41,6
SVI 1607S	7,5	10	118,1	112	109,2	105,8	100,1	96,7	91	84,5	68,5	48,5
SVI 1608S	7,5	10	134,9	128	124,8	120,9	114,4	110,6	104	96,5	78,3	55,4
SVI 1610S	11	15	168,7	160	156	151,1	143	138,2	130	120,7	97,9	69,3
SVI 1612S	11	15	202,4	192	187,2	181,3	171,6	165,8	156,1	144,8	117,4	83,1
SVI 1614S	15	20	236,1	224	218,4	211,6	200,2	193,5	182,1	168,9	137	97
SVI 1615S	15	20	253	240	234,1	226,7	214,5	207,3	195,1	181	146,8	103,9

Dimensions and weight

Mehrstufige Edelstahl Eintauchpumpe Baureihe SVI16 Abmessungen

Pump type	Motor		Dimensions (mm)							weight
Pump type	kW	size	L	L1	L2	L3	M	D1	D2	kg
SVI1601/02S11T	1,1	80	528	146	263	119	129	155	120	25
SVI1602/02S22T	2,2	90	538	146	263	129	129	155	140	30
SVI1603/03S30T	3	100	621	184	298	139	134	174	160	39
SVI1604/04S40T	4	112	680	222	319	139	154	197	160	57
SVI1605/05S55T	5,5	132	794	260	375	159	168	214	300	67
SVI1606/06S55T	5,5	132	832	298	375	159	168	214	300	68
SVI1607/07S75T	7,5	132	862	336	367	159	191	256	300	85
SVI1608/08S75T	7,5	132	900	374	367	159	191	256	300	86
SVI1610/10S110T	11	160	1069	450	428	191	191	256	350	119
SVI1612/12S110T	11	160	1145	526	428	191	191	256	350	121
SVI1614/14S150T	15	160	1287	602	494	191	240	313	350	130
SVI1615/15S150T	15	160	1325	640	494	191	240	313	350	131

Pump type	Motor		L2+L3	N. of stages
	kW	size	mm	2	3	4	5	6	7	8	9	11	12	13	14	15	16
	kW	size	mm	L1 Shank lengths in mm
SVI1601/02S11T	1,1	80	382	146	184	222	260	298	336	374	412	450	488	526	602	640	678
SVI1602/02S22T	2,2	90	392	146	184	222	260	298	336	374	412	450	488	526	602	640	678
SVI1603/03S30T	3	100	437		184	222	260	298	336	374	412	450	488	526	602	640	678
SVI1604/04S40T	4	112	458			222	260	298	336	374	412	450	488	526	602	640	678
SVI1605/05S55T	5,5	132	534				260	298	336	374	412	450	488	526	602	640	678
SVI1606/06S55T	5,5	132	534					298	336	374	412	450	488	526	602	640	678
SVI1607/07S75T	7,5	132	526						336	374	412	450	488	526	602	640	678
SVI1608/08S75T	7,5	132	526							374	412	450	488	526	602	640	678
SVI1610/10S110T	11	160	619									450	488	526	602	640	678
SVI1612/12S110T	11	160	619											526	602	640	678
SVI1614/14S150T	15	160	685												602	640	678
SVI1615/15S150T	15	160	685													640	678

Series SVI33..S (N) Multi-Stage Stainless steel-Vertical pump with submersible body

Characteristics of Series SVI 33 (Versions S, N)

• Vertical pump with submersible body.
• "S" version with standard motor; impellers, diffusers, tie-rods, suction base and filter made entirely of stainless steel. Adapter and upper head in cast iron.
• "N" version with standard motor; made entirely of AISI 316 stainless steel.
• Delivery port can be coupled to counter-flanges, according to EN 1092.
• Four new sizes (SVI 33-46-66-92) entirely redesigned; improved efficiency and performances.
• Motor versions, depending on the model:
- with standard bearings for powers up to 11 kW.
- with reinforced bearings, able to support the vertical axial thrust of the pump for powers
≥ 15 kW (SVI3306/2, SVI4604/2, SVI9202 excluded, with standard bearings).
• Balanced mechanical seal (SiC/C/FPM as standard) according to EN 12756 (ex DIN 24960) and ISO 3069, which can be replaced without removing the motor from the pump.
• Standard version for temperatures ranging from -10°C e +90°C.

Material

SVI 33 (Versions S)

Nr.	Components	Material	REFERENCE STANDARDS
Nr.	Components	Material	EUROPE	*USA*
1	Laterne mit Delivery port	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
2	Laudrad	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1.4404)	AISI 316L
3	Diffuser	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
4	Adapter	Cast iron	EN 1561-GJL-250 (JL1040)	ASTM Class 35
5	Shaft	Stainless steel	EN 10088-1 - X17CrNi16-2 (1.4057)	AISI 431
6	Adapter	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
7	Wear ring	Technopolymer PPS
8	Coupling (ab 4 kW)	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
9	Seal housing	Cast iron	EN 1561-GJL-250 (JL1040)	ASTM Class 35
10	Mechanical seal	Silicon carbide/Carbon/FPM
11	Elastomers	FPM
12	Coupling protection	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
13	Shaft sleeve and bushing	Tungsten carbide
14	Lager für Diffuser	Carbon
15	Suction base	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1.4408)	ASTM CF8M (AISI 316 cast)
16	Tie rods	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
17	Strainer	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316
18	Screws	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316

SVI 33 (Versions N)

Nr.	Components	Material	REFERENCE STANDARDS
Nr.	Components	Material	EUROPE	*USA*
1	Laterne mit Delivery port	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1.4408)	ASTM CF8M (AISI 316 cast)
2	Laudrad	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1.4404)	AISI 316L
3	Diffuser	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1.4404)	AISI 316L
4	Adapter	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1.4404)	AISI 316L
5	Shaft	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316
6	Adapter	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1.4408)	ASTM CF8M (AISI 316 cast)
7	Wear ring	Technopolymer PPS
8	Coupling (ab 4 kW)	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
9	Seal housing	Stainless steel
10	Mechanical seal	Silicon carbide/Carbon/FPM
11	Elastomers	FPM
12	Coupling protection	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316
13	Shaft sleeve and bushing	Tungsten carbide
14	Lager für Diffuser	Carbon
15	Suction base	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1.4408)	ASTM CF8M (AISI 316 cast)
16	Tie rods	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
17	Strainer	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316
18	Screws	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316

Performance n ≈ 2900 1/min

Pump type	Rated Power		Q=Delivery
			l/min 0	250	300	366,7	400	500	600	666,7
			m 3/h 0	15	18	22	24	30	36	40
	kW	HP	H=Total head in metres of column of water
SVI 3301/1S	2,2	3	17,4	16,2	15,7	14,9	14,3	12,2	9,3	6,7
SVI 3301S	3	4	23,8	21,7	21,2	20,3	19,8	17,8	15	12,7
SVI 3302/2S	4	5,5	35,1	34,1	33,3	31,8	30,8	26,9	21,4	16,6
SVI 3302/1S	4	5,5	40,8	38,8	37,9	36,3	35,4	31,7	26,6	22,3
SVI 3303/2S	5,5	7,5	57,7	55,2	53,8	51,4	49,9	44,1	36,2	29,6
SVI 3303S	7,5	10	71,5	67,4	66,2	64	62,7	57,7	50,7	44,6
SVI 3304S	11	15	95,9	91,1	89,7	87,2	85,7	79,6	70,8	63,1
SVI 3305/1S	11	15	112,7	107,2	105,3	101,9	99,8	91,7	80	70
SVI 3306/2S	15	20	131,2	126,9	124,6	120,3	117,7	107,5	93,2	81,2
SVI 3307/2S	15	20	156	149,9	147,3	142,7	139,8	128,4	112,2	98,2
SVI 3307S	18,5	25	170,3	162,8	160,2	155,7	153	142,2	126,7	113,2
SVI 3308/1S	18,5	25	187,4	179,5	176,5	171,3	168,1	155,5	137,4	121,7
SVI 3309/1S	22	30	210,2	201,2	197,8	191,8	188,2	173,8	153,4	135,9
SVI 3310/2S	22	30	226,4	217,2	213,4	206,8	202,6	186,4	163,5	143,9
SVI 3310S	30	40	241,8	231,3	227,8	221,7	217,9	202,9	181,1	162,1

Dimensions and weight

Mehrstufige Edelstahl Eintauchpumpe Baureihe SVI33 Abmessungen

Pump type	Motor		Dimensions (mm)							weight
Pump type	kW	size	L	L1	L2	L3	M	D1	D2	kg
SVI3301/1-01S22T	2,2	90	782	257	263	262	129	155	140	53
SVI3301-01S30T	3	100	817	257	298	262	134	174	160	64
SVI3302/2-02S40T	4	112	913	332	319	262	154	197	160	70
SVI3302/1-02S40T	4	112	913	332	319	262	154	197	160	70
SVI3303/2-03S55T	5,5	132	1064	407	375	282	168	214	300	88
SVI3303-03S75T	7,5	132	1056	407	367	282	191	256	300	107
SVI3304-04S110T	11	160	1227	482	428	317	191	256	350	128
SVI3305/1-05S110T	11	160	1302	557	428	317	191	256	350	130
SVI3306/2-06S150T	15	160	1443	632	494	317	240	313	350	165
SVI3307/2-07S150T	15	160	1518	707	494	317	240	313	350	168
SVI3307-07S185T	18,5	160	1518	707	494	317	240	313	350	176
SVI3308/1-08S185T	18,5	160	1593	782	494	317	240	313	350	179
SVI3309/1-09S220T	22	180	1668	857	494	317	240	313	350	193
SVI3310/2-10S220T	22	180	1743	932	494	317	240	313	350	196
SVI3310-10S300T	30	200	1862	932	613	317	278	354	400	207

Pump type	Motor		L2+L3	N. of stages
	kW	size	mm	1	2	3	4	5	6	7	8	9	10	11	12
	kW	size	mm	L1 Shank lengths in mm
SVI3301/1-01S22T	2,2	90	525	257	332	407	482	557	632	707	782	857	932	1007	1082
SVI3301-01S30T	3	100	260	257	332	407	482	557	632	707	782	857	932	1007	1082
SVI3302/2-02S40T	4	112	581		332	407	482	557	632	707	782	857	932	1007	1082
SVI3302/1-02S40T	4	112	581		332	407	482	557	632	707	782	857	932	1007	1082
SVI3303/2-03S55T	5,5	132	657			407	482	557	632	707	782	857	932	1007	1082
SVI3303-03S75T	7,5	132	649			407	482	557	632	707	782	857	932	1007	1082
SVI3304-04S110T	11	160	745				482	557	632	707	782	857	932	1007	1082
SVI3305/1-05S110T	11	160	745					557	632	707	782	857	932	1007	1082
SVI3306/2-06S150T	15	160	811						632	707	782	857	932	1007	1082
SVI3307/2-07S150T	15	160	811							707	782	857	932	1007	1082
SVI3307-07S185T	18,5	160	811							707	782	857	932	1007	1082
SVI3308/1-08S185T	18,5	160	811								782	857	932	1007	1082
SVI3309/1-09S220T	22	180	811									857	932	1007	1082
SVI3310/2-10S220T	22	180	811										932	1007	1082
SVI3310-10S300T	30	200	930										932	1007	1082

Series SVI46..S (N) Multi-Stage Stainless steel-Vertical pump with submersible body

Characteristics of Series SVI 46 (Versions S, N)

Material

SVI 46 (Versions S)

Nr.	Components	Material	REFERENCE STANDARDS
Nr.	Components	Material	EUROPE	*USA*
1	Laterne mit Delivery port	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
2	Laudrad	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1.4404)	AISI 316L
3	Diffuser	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
4	Adapter	Cast iron	EN 1561-GJL-250 (JL1040)	ASTM Class 35
5	Shaft	Stainless steel	EN 10088-1 - X17CrNi16-2 (1.4057)	AISI 431
6	Adapter	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
7	Wear ring	Technopolymer PPS
8	Coupling (ab 4 kW)	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
9	Seal housing	Cast iron	EN 1561-GJL-250 (JL1040)	ASTM Class 35
10	Mechanical seal	Silicon carbide/Carbon/FPM
11	Elastomers	FPM
12	Coupling protection	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
13	Shaft sleeve and bushing	Tungsten carbide
14	Lager für Diffuser	Carbon
15	Suction base	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1.4408)	ASTM CF8M (AISI 316 cast)
16	Tie rods	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
17	Strainer	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316
18	Screws	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316

SVI 46 (Versions N)

Nr.	Components	Material	REFERENCE STANDARDS
Nr.	Components	Material	EUROPE	*USA*
1	Laterne mit Delivery port	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1.4408)	ASTM CF8M (AISI 316 cast)
2	Laudrad	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1.4404)	AISI 316L
3	Diffuser	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1.4404)	AISI 316L
4	Adapter	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1.4404)	AISI 316L
5	Shaft	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316
6	Adapter	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1.4408)	ASTM CF8M (AISI 316 cast)
7	Wear ring	Technopolymer PPS
8	Coupling (ab 4 kW)	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
9	Seal housing	Stainless steel
10	Mechanical seal	Silicon carbide/Carbon/FPM
11	Elastomers	FPM
12	Coupling protection	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316
13	Shaft sleeve and bushing	Tungsten carbide
14	Lager für Diffuser	Carbon
15	Suction base	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1.4408)	ASTM CF8M (AISI 316 cast)
16	Tie rods	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
17	Strainer	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316
18	Screws	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316

Performance n ≈ 2900 1/min

Pump type	Rated Power		Q=Delivery
			l/min 0	366,7	400	500	600	666,7	700	800	900	1000
			m 3/h 0	22	24	30	36	40	42	48	54	60
	kW	HP	H=Total head in metres of column of water
SVI 4601/1S	3	4	19,5	19,2	19	17,9	16,4	15,1	14,4	11,7	8,5	4,6
SVI 4601S	4	5,5	27,2	24	23,7	22,5	21,1	19,9	19,3	17,1	14,3	10,8
SVI 4602/2S	5,5	7,5	38,8	39,8	39,4	37,8	35,2	32,9	31,6	26,9	21,1	13,9
SVI 4602S	7,5	10	52,6	48,5	48	46,1	43,7	41,7	40,6	36,5	31,4	25,1
SVI 4603S	11	15	80,8	74,3	73,5	70,9	67,4	64,6	62,9	57,1	49,8	40,7
SVI 4604/2S	15	20	92,4	90,7	89,9	86,9	82,5	78,6	76,3	68,3	58,2	45,6
SVI 4605S	18,5	25	134,5	125,1	124	120	114,7	110,2	107,6	98,3	86,4	71,5
SVI 4606S	22	30	161	149,8	148,5	143,8	137,4	132	128,9	117,8	103,7	86
SVI 4607/2S	30	40	171,3	164,9	163,6	158,3	150,8	144,3	140,6	127,1	109,9	88,6
SVI 4608/2S	30	40	198,2	190	188,4	182,4	173,8	166,4	162,2	146,9	127,3	103,1
SVI 4609/2S	30	40	224,8	214,5	212,6	205,6	195,7	187,3	182,5	165,2	143,2	116

Dimensions and weight

Mehrstufige Edelstahl Eintauchpumpe Baureihe SVI46 Abmessungen

Pump type	Motor		Dimensions (mm)							weight
Pump type	kW	size	L	L1	L2	L3	M	D1	D2	kg
SVI4601/1-01S30T	3	100	817	257	298	262	134	174	160	64
SVI4601-01S40T	4	112	838	257	319	262	154	197	160	67
SVI4602/2-02S55T	5,5	132	989	332	375	282	168	214	300	85
SVI4602-02S75T	7,5	132	981	332	367	282	191	256	300	104
SVI4603-03S110T	11	160	1152	407	428	317	191	256	350	125
SVI4604/2-04S150T	15	160	1293	482	494	317	240	313	350	159
SVI4605-05S185T	18,5	160	1368	557	494	317	240	313	350	171
SVI4606-06S220T	22	180	1443	632	494	317	240	313	350	185
SVI4607/2-07S300T	30	200	1637	707	613	317	278	354	400	205
SVI4608/2-08S300T	30	200	1712	782	613	317	278	354	400	208
SVI4609/2-09S300T	30	200	1787	857	613	317	278	354	400	210

Pump type	Motor		L2+L3	N. of stages
	kW	size	mm	1	2	3	4	5	6	7	8	9	10	11	12
	kW	size	mm	L1 Shank lengths in mm
SVI4601/1-01S30T	3	100	560	257	332	407	482	557	632	707	782	857	932	1007	1082
SVI4601-01S40T	4	112	581	257	332	407	482	557	632	707	782	857	932	1007	1082
SVI4602/2-02S55T	5,5	132	657		332	407	482	557	632	707	782	857	932	1007	1082
SVI4602-02S75T	7,5	132	649		332	407	482	557	632	707	782	857	932	1007	1082
SVI4603-03S110T	11	160	745			407	482	557	632	707	782	857	932	1007	1082
SVI4604/2-04S150T	15	160	811				482	557	632	707	782	857	932	1007	1082
SVI4605-05S185T	18,5	160	811					557	632	707	782	857	932	1007	1082
SVI4606-06S220T	22	180	811						632	707	782	857	932	1007	1082
SVI4607/2-07S300T	30	200	930							707	782	857	932	1007	1082
SVI4608/2-08S300T	30	200	930								782	857	932	1007	1082
SVI4609/2-09S300T	30	200	930									857	932	1007	1082

Series SVI66..S (N) Multi-Stage Stainless steel-Vertical pump with submersible body

Characteristics of Series SVI 66 (Versions S, N)

Material

SVI 66 (Versions S)

Nr.	Components	Material	REFERENCE STANDARDS
Nr.	Components	Material	EUROPE	*USA*
1	Laterne mit Delivery port	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
2	Laudrad	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1.4404)	AISI 316L
3	Diffuser	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
4	Adapter	Cast iron	EN 1561-GJL-250 (JL1040)	ASTM Class 35
5	Shaft	Stainless steel	EN 10088-1 - X17CrNi16-2 (1.4057)	AISI 431
6	Adapter	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
7	Wear ring	Technopolymer PPS
8	Coupling (ab 4 kW)	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
9	Seal housing	Cast iron	EN 1561-GJL-250 (JL1040)	ASTM Class 35
10	Mechanical seal	Silicon carbide/Carbon/FPM
11	Elastomers	FPM
12	Coupling protection	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
13	Shaft sleeve and bushing	Tungsten carbide
14	Lager für Diffuser	Carbon
15	Suction base	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1.4408)	ASTM CF8M (AISI 316 cast)
16	Tie rods	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
17	Strainer	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316
18	Screws	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316

SVI 66 (Versions N)

Nr.	Components	Material	REFERENCE STANDARDS
Nr.	Components	Material	EUROPE	*USA*
1	Laterne mit Delivery port	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1.4408)	ASTM CF8M (AISI 316 cast)
2	Laudrad	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1.4404)	AISI 316L
3	Diffuser	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1.4404)	AISI 316L
4	Adapter	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1.4404)	AISI 316L
5	Shaft	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316
6	Adapter	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1.4408)	ASTM CF8M (AISI 316 cast)
7	Wear ring	Technopolymer PPS
8	Coupling (ab 4 kW)	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
9	Seal housing	Stainless steel
10	Mechanical seal	Silicon carbide/Carbon/FPM
11	Elastomers	FPM
12	Coupling protection	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316
13	Shaft sleeve and bushing	Tungsten carbide
14	Lager für Diffuser	Carbon
15	Suction base	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1.4408)	ASTM CF8M (AISI 316 cast)
16	Tie rods	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
17	Strainer	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316
18	Screws	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316

Performance n ≈ 2900 1/min

Pump type	Rated Power		Q=Delivery
			l/min 0	500	600	750	900	1000	1100	1200	1416,7
			m 3/h 0	30	36	45	54	60	66	72	85
	kW	HP	H=Total head in metres of column of water
SVI 6601/1S	4	5,5	23,8	21,4	20,7	19,4	17,8	16,6	15,1	13,3	8,3
SVI 6601S	5,5	7,5	29,2	25,8	24,8	23,3	21,8	20,7	19,4	17,9	13,4
SVI 6602/2S	7,5	10	47,5	42,6	41,2	38,6	35,5	32,9	30	26,4	16,4
SVI 6602S	11	15	60,4	55,7	54,4	52	49,3	47,1	44,7	42	34,6
SVI 6603/2S	15	20	78,4	71,6	69,6	65,9	61,5	57,9	53,8	49	35,3
SVI 6603S	18,5	25	91,4	84,7	82,7	79,3	75,2	72	68,5	64,4	53,5
SVI 6604/1S	22	30	115,2	105,9	103,1	98,5	92,9	88,6	83,6	77,8	61,7
SVI 6605/1S	30	40	145,6	134	130,5	124,7	117,8	112,4	106,3	99,2	79,4

Dimensions and weight

Mehrstufige Edelstahl Eintauchpumpe Baureihe SVI66 Abmessungen

Pump type	Motor		Dimensions (mm)							weight
Pump type	kW	size	L	L1	L2	L3	M	D1	D2	kg
SVI6601/1-01S40T	4	112	853	272	319	262	154	197	160	73
SVI6601-01S55T	5,5	132	929	272	375	282	168	214	300	83
SVI6602/2-02S75T	7,5	132	1011	362	367	282	191	256	300	109
SVI6602-02S110T	11	160	1107	362	428	317	191	256	350	124
SVI6603/2-03S150T	15	160	1263	452	494	317	240	313	350	159
SVI6603-03S185T	18,5	160	1263	452	494	317	240	313	350	160
SVI6604/1-04S220T	22	180	1353	542	494	317	240	313	350	190
SVI6605/1-05S300T	30	200	1562	632	613	317	278	354	400	203

Pump type	Motor		L2+L3	N. of stages
	kW	size	mm	1	2	3	4	5	6	7	8	9	10
	kW	size	mm	L1 Shank lengths in mm
SVI6601/1-..	4	112	581	272	362	452	542	632	722	812	902	992	1082
SVI6601-..	5,5	132	657	272	362	452	542	632	722	812	902	992	1082
SVI6602/2-..	7,5	132	649		362	452	542	632	722	812	902	992	1082
SVI6602-..	11	160	745		362	452	542	632	722	812	902	992	1082
SVI6603/2-..	15	160	811			452	542	632	722	812	902	992	1082
SVI6603-..	18,5	160	811			452	542	632	722	812	902	992	1082
SVI6604/1-..	22	180	811				542	632	722	812	902	992	1082
SVI6605/1-..	30	200	930					632	722	812	902	992	1082

Series SVI92..S (N) Multi-Stage Stainless steel-Vertical pump with submersible body

Characteristics of Series SVI 92 (Versions S, N)

Material

SVI 92 (Versions S)

Nr.	Components	Material	REFERENCE STANDARDS
Nr.	Components	Material	EUROPE	*USA*
1	Laterne mit Delivery port	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
2	Laudrad	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1.4404)	AISI 316L
3	Diffuser	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
4	Adapter	Cast iron	EN 1561-GJL-250 (JL1040)	ASTM Class 35
5	Shaft	Stainless steel	EN 10088-1 - X17CrNi16-2 (1.4057)	AISI 431
6	Adapter	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
7	Wear ring	Technopolymer PPS
8	Coupling (ab 4 kW)	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
9	Seal housing	Cast iron	EN 1561-GJL-250 (JL1040)	ASTM Class 35
10	Mechanical seal	Silicon carbide/Carbon/FPM
11	Elastomers	FPM
12	Coupling protection	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
13	Shaft sleeve and bushing	Tungsten carbide
14	Lager für Diffuser	Carbon
15	Suction base	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1.4408)	ASTM CF8M (AISI 316 cast)
16	Tie rods	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
17	Strainer	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316
18	Screws	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316

SVI 92 (Versions N)

Nr.	Components	Material	REFERENCE STANDARDS
Nr.	Components	Material	EUROPE	*USA*
1	Laterne mit Delivery port	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1.4408)	ASTM CF8M (AISI 316 cast)
2	Laudrad	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1.4404)	AISI 316L
3	Diffuser	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1.4404)	AISI 316L
4	Adapter	Stainless steel	EN 10088-1-X2CrNiMo17-12-2 (1.4404)	AISI 316L
5	Shaft	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316
6	Adapter	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1.4408)	ASTM CF8M (AISI 316 cast)
7	Wear ring	Technopolymer PPS
8	Coupling (ab 4 kW)	Cast iron	EN 1561-GJL-200 (JL1030)	ASTM Class 25
9	Seal housing	Stainless steel
10	Mechanical seal	Silicon carbide/Carbon/FPM
11	Elastomers	FPM
12	Coupling protection	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316
13	Shaft sleeve and bushing	Tungsten carbide
14	Lager für Diffuser	Carbon
15	Suction base	Stainless steel	EN 10213-4-GX5CrNiMo19-11-2 (1.4408)	ASTM CF8M (AISI 316 cast)
16	Tie rods	Stainless steel	EN 10088-1-X5CrNi18-10 (1.4301)	AISI 304
17	Strainer	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316
18	Screws	Stainless steel	EN 10088-1-X5CrNiMo17-12-2 (1.4401)	AISI 316

Performance n ≈ 2900 1/min

Pump type	Motor power		Q=Delivery
			l/min 0	750	900	1000	1100	1200	1416,7	1600	1800	2000
			m 3/h 0	45	54	60	66	72	85	96	108	120
	kW	HP	H=Total head in metres of column of water
SVI 9201/1S	5,5	7,5	24,5	22,2	21,5	20,9	20,2	19,4	17,3	15	11,8	7,9
SVI 9201S	7,5	10	33,5	28,7	27,2	26,2	25,3	24,3	22,2	20,2	17,6	14,3
SVI 9202/2S	11	15	49,4	45,1	43,7	42,5	41,2	39,6	35,5	30,9	24,6	16,8
SVI 9202S	15	20	67,8	58,2	55,3	53,4	51,4	49,5	45,3	41,4	36,3	29,6
SVI 9203/2S	18,5	25	82,4	74,4	71,6	69,6	67,3	64,8	58,6	52,2	43,6	32,9
SVI 9203S	22	30	102,2	88,2	84	81,2	78,4	75,5	69,2	63,4	55,9	46,3
SVI 9204/2S	30	40	115,7	104	99,9	97	93,8	90,4	82,2	73,8	62,8	49
SVI 9204S	30	40	133,1	117	111,7	108	104,4	100,6	92,3	84,6	74,8	62,5

Dimensions and weight

Mehrstufige Edelstahl Eintauchpumpe Baureihe SVI92 Abmessungen

Pump type	Motor		Dimensions (mm)							weight
Pump type	kW	size	L	L1	L2	L3	M	D1	D2	kg
SVI9201/1-01S55T	5,5	132	929	272	375	282	168	214	300	83
SVI9201-01S75T	7,5	132	921	272	367	282	191	256	300	101
SVI9202/2-02S110T	11	160	1107	362	428	317	191	256	350	123
SVI9202-02S150T	15	160	1173	362	494	317	240	313	350	155
SVI9203/2-03S185T	18,5	160	1263	452	494	317	240	313	350	167
SVI9203-03S220T	22	180	1263	452	494	317	240	313	350	179
SVI9204/2-04S300T	30	200	1472	542	613	317	278	354	400	200
SVI9204-04S300T	30	200	1472	542	613	317	278	354	400	200

Pump type	Motor		L2+L3	N. of stages
	kW	size	mm	1	2	3	4	5	6	7	8	9	10
	kW	size	mm	L1 Shank lengths in mm
SVI9201/1-..	5,5	132	657	272	362	452	542	632	722	812	902	992	1082
SVI9201-..	7,5	132	649	272	362	452	542	632	722	812	902	992	1082
SVI9202/2-..	11	160	745		362	452	542	632	722	812	902	992	1082
SVI9202-..	15	160	811		362	452	542	632	722	812	902	992	1082
SVI9203/2-..	18,5	160	811			452	542	632	722	812	902	992	1082
SVI9203-..	22	180	811			452	542	632	722	812	902	992	1082
SVI9204/2-..	30	200	930				542	632	722	812	902	992	1082
SVI9204-..	30	200	930				542	632	722	812	902	992	1082

Get in contact now

Your information

SVI Submersible Vertical Electric pumps with high efficiency PLM motors

APPLICATIONS

SPECIFICATIONS

MOTORS

Series SVI2..E Multi-Stage Stainless steel-Vertical pump with submersible body

CHARACTERISTICS OF SVI 2 Series (Versions E, EN)

Material

SVI 2, 4 (Versions E)

SVI 2, 4 (Versions EN)

Performance n ≈ 2900 1/min

Dimensions and weight

Series SVI4..E Multi-Stage Stainless steel-Vertical pump with submersible body

Characteristics of Series SVI 4 (Versions E, EN)

Material

Performance n ≈ 2900 1/min

Dimensions and weight

Series SVI2..S (N) Multi-Stage Stainless steel-Vertical pump with submersible body

Characteristics of Series SVI 2 (Versions S, N)

Material

Performance n ≈ 2900 1/min

Dimensions and weight

Series SVI4..S (N) Multi-Stage Stainless steel-Vertical pump with submersible body

Characteristics of Series SVI 4 (Versions S, N)

Material

Performance n ≈ 2900 1/min

Dimensions and weight

Series SVI8..S (N) Multi-Stage Stainless steel-Vertical pump with submersible body

Characteristics of Series SVI 8 (Versions S, N)

Material

Performance n ≈ 2900 1/min

Dimensions and weight

Series SVI16..S (N) Multi-Stage Stainless steel-Vertical pump with submersible body

Characteristics of Series SVI 16 (Versions S, N)

Material

Performance n ≈ 2900 1/min

Dimensions and weight

Series SVI33..S (N) Multi-Stage Stainless steel-Vertical pump with submersible body

Characteristics of Series SVI 33 (Versions S, N)

Material

Performance n ≈ 2900 1/min

Dimensions and weight

Series SVI46..S (N) Multi-Stage Stainless steel-Vertical pump with submersible body

Characteristics of Series SVI 46 (Versions S, N)

Material

Performance n ≈ 2900 1/min

Dimensions and weight

Series SVI66..S (N) Multi-Stage Stainless steel-Vertical pump with submersible body

Characteristics of Series SVI 66 (Versions S, N)

Material

Performance n ≈ 2900 1/min

Dimensions and weight

Series SVI92..S (N) Multi-Stage Stainless steel-Vertical pump with submersible body

Characteristics of Series SVI 92 (Versions S, N)

Material

Performance n ≈ 2900 1/min

Dimensions and weight
