series FOM Gear-pumps with electric motor

Construction
Self-priming electric-gear-pumps, bellhousing with foot-flange, pump-casing in cast iron. Gear-pumps series FOM with motor-power up to 18,5 kW. Suction- and pressure-ports whitworth pipe threads - opposite 180°. For type FOM 5.. SAE-flange optionally.

Applications
Industrial applications, for example:
Lubrication systems, coolant feed in machine tools, heat transfer, test bench and many more.

Example of liquids suitable for transport
Pure, non-explosive liquids, not corrosive against pump materials, without any solids. The liquids to deliver, must have lubricating characteristics.
oil, mineral oil, synthetic oil, adhesives, sealants, polymers, diesel, paints, inks and many more.



Operating conditions
Liquid temperature: -20°C to +60°C (NBR)
Ambient temperature from -20°C up to +40°C
Operating pressure: max. 80 bar
Others on request

Drive
Standard: three-phase asynchronous motor
Operation mode: Continuous operation S1 thermal class 155,
protection IP 55
Optional: single-phase motor, DC-motors

Zahnradflanschpumpen Drehrichtung Baureihe F

Gear pumps series FOMU with integrated pressure relief valve

The pumps series FOM optionally available as series FOMU with circulation valve in the pump head

Schnittzeichnung einer Öl Förderpumpe

Materials

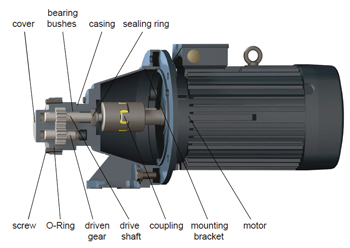

FOM Elektrozahnradpumpe Schnittzeichnung
components Materials Alternativ
casing and cover cast iron - EN-GJL-250 - (GG25) ductile cast iron (GGG40)
shaft steel
gears Steel, hardened and grinded
bearing bushes composite bearings
shaft seal Sealing Ring NBR FPM, PTFE, GLRD, packing gland u.a.

Performance n ≈ 1450 1/min Series FOM3

type cm³/U motor power
kW
pressure
max. bar
pressure (bar)
5 50 60 70 80 90 100
capacity (l/min)
FOM 310 5,10 2,2 100 7,4 7,0 6,9 6,8 6,7 6,6 6,5
FOM 314 7,10 2,2 80 10,2 9,4 9,1 8,8 8,5 8,0 7,4
3 100
FOM 318 9,10 2,2 60 13,2 12,1 11,8 11,5 11,2 10,8 10,4
3 80
4 100
FOM 323 11,70 2,2 45 16,7 15,6 15,2 14,8 14,4 14,0 13,6
3 65
4 90
5,5 100
FOM 328 14,10 2,2 35 20,3 19,4 19,0 18,6 18,2 17,7 17,2
3 50
4 70
5,5 100
FOM 333 16,70 2,2 30 24,1 23,2 22,9 22,5 22,1 21,6 21,1
3 40
4 55
5,5 80
7,5 100
Valid for hydraulic oil with 35 mm²/s at 50 °C Oil-Speed: max. 1,5 m/s suction side, max. 4,5 m/s pressure side
Tolerance of capacity: +/- 3%

Dimensions and weight

FOM 310 - FOM 323

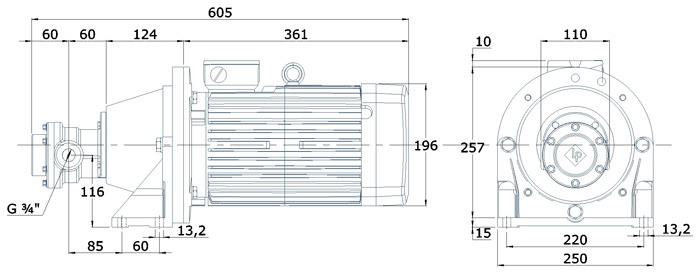

Schmierölpumpe FOM310-323 2,2kW Abmessungen 2,2 kW weight: 26,5 kg

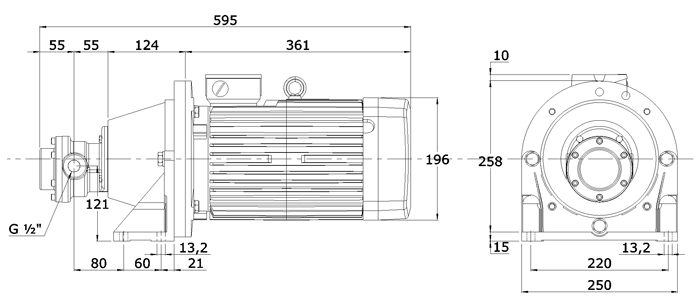

FOM 314 - FOM 323

Hydraulikpumpe FOM310-323 3,0kW Abmessungen 3,0 kW weight: 28,5 kg

FOM 318 - FOM 323

Getriebeölpumpe FOM310-323 4 kW Abmessungen 4,0 kW weight: 33,5 kg

FOM 323

Schmiermittelpumpe FOM310-323 5,0kW Abmessungen 5,5 kW weight: 50,5 kg

FOM 328 - FOM 333

Kühlmittelpumpe FOM328-333 2,2kW Abmessungen 2,2 kW weight: 26,5 kg

FOM 328 - FOM 333

Thermoölpumpe FOM328-333 3,0 kW Abmessungen 3,0 kW weight: 28,5 kg

FOM 328 - FOM 333

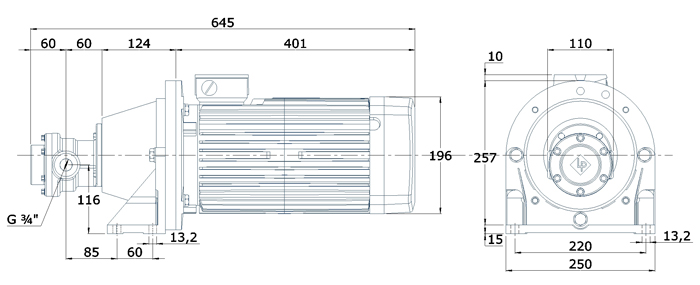

Ölpumpe FOM328-333 -  4,0kW Abmessungen 4,0 kW weight: 33,5 kg

FOM 328 - FOM 333

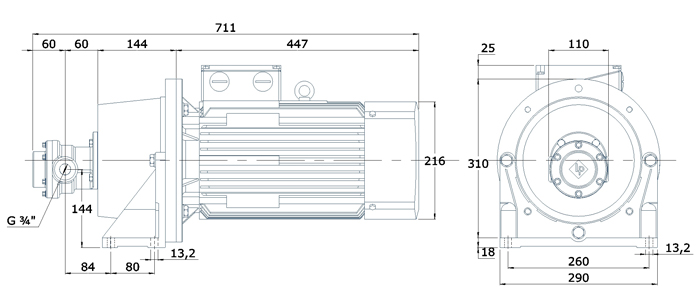

Hydraulikpumpe FOM328-333 - 5,5 kW Abmessungen 5,5 kW weight: 50,5 kg

FOM 328 - FOM 333

Zentralschmierungspumpe FOM328-333 - 7,5 kW Abmessungen 7,5 kW weight: 58,5 kg

Performance n ≈ 1450 1/min Series FOM4

type cm³/U motor power
kW
pressure
max. bar
pressure (bar)
5 10 15 20 30 40 50
capacity (l/min)
FOM 422 21,20 2,2 25 30,50 30,30 30,10 29,80 29,40 29,00 28,50
3 32
4 45
5,5 50
FOM 426 25,00 2,2 20 36,20 36,00 35,80 35,50 35,10 34,70 34,20
3 28
4 37
5,5 50
FOM 430 28,90 2,2 18 41,60 41,40 41,20 40,90 40,50 40,10 39,60
3 24
4 32
5,5 45
7,5 50
FOM 434 32,80 2,2 15 47,30 47,10 46,90 46,60 46,20 45,80 45,30
3 21
4 28
5,5 38
7,5 50
FOM 438 36,70 2,2 14 53,00 52,80 52,60 52,30 51,90 51,50 51,00
3 19
4 25
5,5 35
7,5 50
Valid for hydraulic oil with 35 mm²/s at 50 °C Oil-Speed: max. 1,5 m/s suction side, max. 4,5 m/s pressure side
Tolerance of capacity: +/- 3%

Dimensions and weight

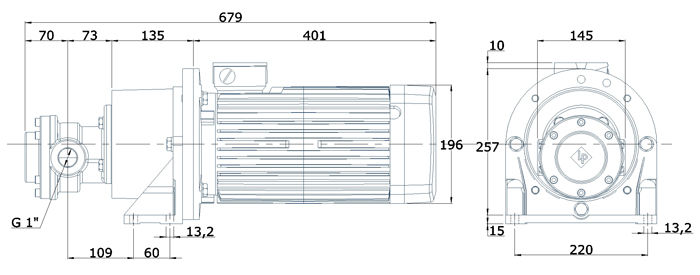

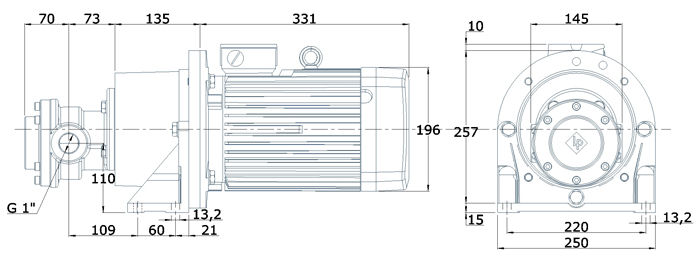

FOM 422 - FOM 438 -

Schmierölpumpe FOM310-323 2,2kW Abmessungen 2,2 kW - weight: 31,5 kg

FOM 422 - FOM 438 -

Hydraulikpumpe FOM310-323 3,0kW Abmessungen 3,0 kW - weight: 33,5 kg

FOM 422 - FOM 438 -

Getriebeölpumpe FOM310-323 4 kW Abmessungen 4,0 kW - weight: 38,5 kg

FOM 422 - FOM 438 -

Schmiermittelpumpe FOM310-323 5,0kW Abmessungen 5,5 kW - weight: 55,5 kg

FOM 422 - FOM 438 -

Kühlmittelpumpe FOM328-333 2,2kW Abmessungen 7,5 kW - weight: 63,5 kg

Performance n ≈ 1450 1/min Series FOM5

type cm³/U motor power
kW
pressure
max. bar
pressure (bar)
5 10 15 20 30 40 50
capacity (l/min)
FOM 545 43,40 2,2 12 62,70 62,50 62,30 61,80 61,30 60,80 60,30
3 16
4 22
5,5 30
7,5 41
11 50
FOM 556 54,00 2,2 10 78,10 77,90 77,70 77,20 76,70 76,20 75,70
3 13
4 17
5,5 24
7,5 32
11 48
15 50
FOM 570 67,50 2,2 8 97,70 97,50 97,20 96,70 96,20 95,70 95,20
3 10
4 14
5,5 19
7,5 26
11 38
15 50
FOM 590 86,80 2,2 6 124,00 123,80 123,60 123,10 122,60 122,10 121,60
3 8
4 11
5,5 15
7,5 20
11 30
15 40
18,5 50
Valid for hydraulic oil with 35 mm²/s at 50 °C Oil-Speed: max. 1,5 m/s suction side, max. 4,5 m/s pressure side
Tolerance of capacity: +/- 3%

Dimensions and weight

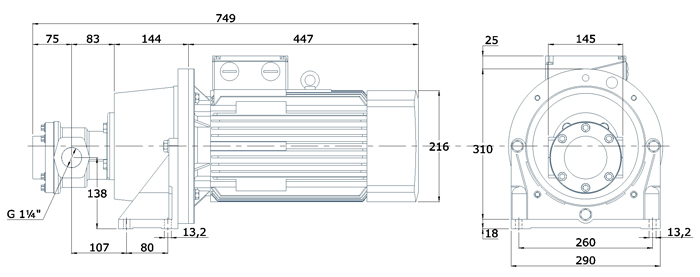

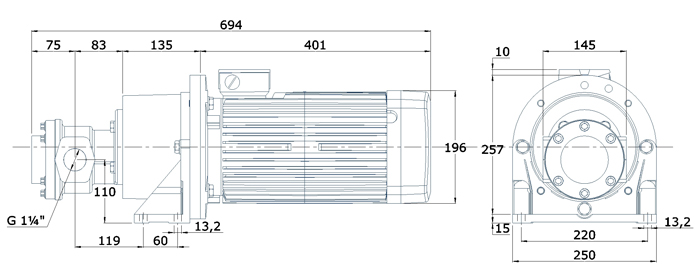

FOM 545 - FOM 556 -

Schmierölpumpe FOM310-323 2,2kW Abmessungen 2,2 kW - weight: 33 kg

FOM 545 - FOM 556 -

Hydraulikpumpe FOM310-323 3,0kW Abmessungen 3,0 kW - weight: 35 kg

FOM 545 - FOM 556 -

Getriebeölpumpe FOM310-323 4 kW Abmessungen 4,0 kW - weight: 40 kg

FOM 545 - FOM 556 -

Schmiermittelpumpe FOM310-323 5,0kW Abmessungen 5,5 kW - weight: 57 kg

FOM 545 - FOM 556 -

Kühlmittelpumpe FOM328-333 2,2kW Abmessungen 7,5 kW - weight: 65 kg

FOM 545 - FOM 556 -

Kühlmittelpumpe FOM328-333 2,2kW Abmessungen 11 kW - weight: 82 kg

FOM 545 - FOM 556 -

Kühlmittelpumpe FOM328-333 2,2kW Abmessungen 15 kW - weight: 116 kg

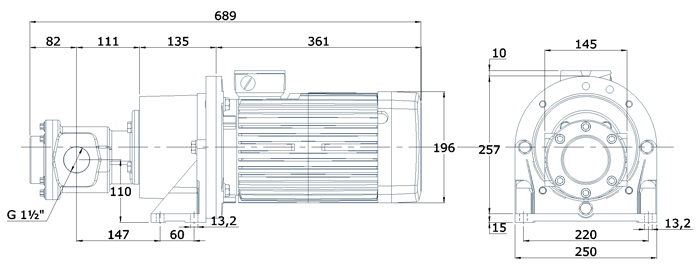

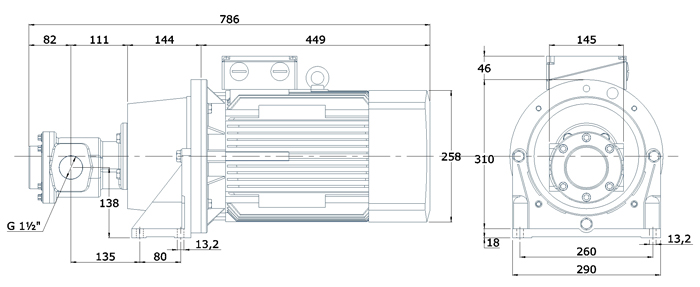

FOM 570 - FOM 590 -

Schmierölpumpe FOM310-323 2,2kW Abmessungen 2,2 kW - weight: 36 kg

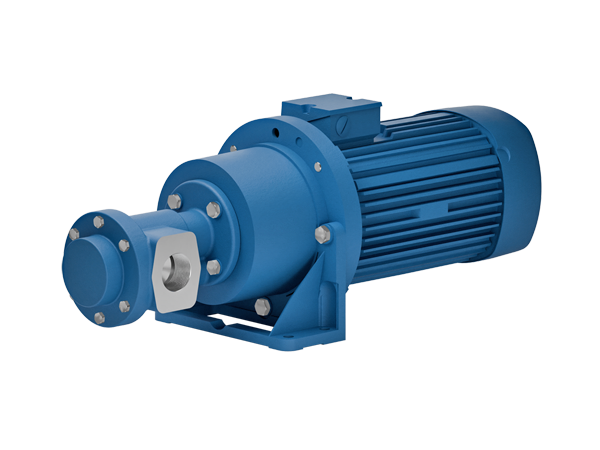

FOM 570 - FOM 590 -

Hydraulikpumpe FOM310-323 3,0kW Abmessungen 3,0 kW - weight: 38 kg

FOM 570 - FOM 590 -

Getriebeölpumpe FOM310-323 4 kW Abmessungen 4,0 kW - weight: 43 kg

FOM 570 - FOM 590 -

Schmiermittelpumpe FOM310-323 5,0kW Abmessungen 5,5 kW - weight: 60 kg

FOM 570 - FOM 590 -

Kühlmittelpumpe FOM328-333 2,2kW Abmessungen 7,5 kW - weight: 68 kg

FOM 570 - FOM 590 -

Kühlmittelpumpe FOM328-333 2,2kW Abmessungen 11 kW - weight: 85 kg

FOM 570 - FOM 590 -

Kühlmittelpumpe FOM328-333 2,2kW Abmessungen 15 kW - weight: 119 kg

FOM 570 - FOM 590 -

Kühlmittelpumpe FOM328-333 2,2kW Abmessungen 18,5 kW - weight: 135 kg
