Immersion Pumps Series AP - with open or close impeller

Usages:
These pumps are suitable for transferring liquids containing impurities measuring up to 2 mm. The hydraulic components, namely the cast-iron impeller and scroll and the steel pump body, allow the pumps to be used with water, emulsions and oily substances in general with a maximum viscosity of 3° Engler (21 CST).

The temperature of the liquid must not exceed 90° C.

They are usually used on:
• Machine tools (milling machines-lathes-work centres)
• Glass processing machines
• Surface treatment systems
• Filtration systems

They should usually be installed at about 6 – 7 cm. from the base of a tank, with a capacity in proportion to the flow rate. It is important to check that the maximum level of the liquid in the tank always remains 3 – 4 cm. lower than the flange (see figure). In cases where the liquid is particularly dirty, the user is recommended to construct the tank in compartments to allow the dirt to deposit before it is stirred up by the pump.

For other usages you are advised to consult our technical office.

Immersion pump with open or close impeller series AP

Material

Components AP
Pump body Cast iron G 20
Pumpendeckel Cast iron G 20
Impeller
Cast iron G20
Shaft Steel

Performance n ≈ 2900 1/min

Typ kW Impeller H = Förderhöhe in m
in. nom. 10 12 14 16 18 20 22 24 26 28 30 32 34
P1 P2 Q = Performance l/min
 AP 80 B   2,19 1,5  closed   220 195 180 160 130 98 50
 AP 90A   2,7 1,85  closed   399 375 355 330 305 282 225 190 165 100 25
 AP 90 B   3,6 2,6  closed   460 440 420 400 375 346 310 263 212 160 98
 AP 100A   4,8 4  closed   507 492 478 460 438 416 390 362 340 285 190 80
 AP 112A   5,5 4  closed   601 585 571 560 543 512 460 422 380 340 290 230 100
 AP 112B   6 5,5  closed   759 736 710 681 652 616 571 508 460 408 337 260 130
P1 Max. Leistungsaufnahme.
P2 MotorRated Power.

Typ kW Impeller H = Förderhöhe in m
in. nom. 10 12 14 16 18 20 22 24 26 28 30 32 34
P1 P2 Q = Performance l/min
 AP 80 B   2,19 1,5  open   222 195 175 155 130 83 30
 AP 90A   2,7 1,85  open   286 255 225 190 157 111 65
 AP 90 B   3,6 2,6  open   404 378 353 330 300 266 238 200 150 80
 AP 100A   4,8 4  open   409 385 355 322 290 249 210 170 125 70
 AP 112A   5,5 4  open   496 475 455 432 405 370 340 300 242 170 70
 AP 112B   6 5,5  open   801 770 735 690 650 598 540 480 410 340 268 133
P1 Max. Leistungsaufnahme.
P2 MotorRated Power.

Electrical features

type kW 50 Hz 60Hz
Input 230/400 254-290 / 440 - 500 230/400 208-230/440-460 254-277/440-480 318-346/550-600
AP 80 B 2,19 5,5/3,2 4,2/2,4 6,6/3,8 5,7/3,3 5,5/3,2 4,3/2,5
AP 90 A 2,7 9,3/5,4 7,0/4,0 11,1/6,4 9,7/5,6 9,3/5,4 7,4/4,3
AP 90 B 3,6 10,8/6,2 8,3/4,8 13,0/7,5 10,9/6,3 10,8/6,3 8,5/4,9
AP 100 A 4,8 14,5/8,4 11,0/6,3 17,3/10 14,8/8,6 14,5/8,4 11,4/6,0
AP 112 A 5,5 19,2/11 14,5/8,4 23,8/13,8 19,4/11,2 19,2/11 15,2/8,7
AP 112 B 6 21,0/12,2 16,0/9,2 25,2/14,5 21,4/12,4 21,0/12,2 16,6/9,6

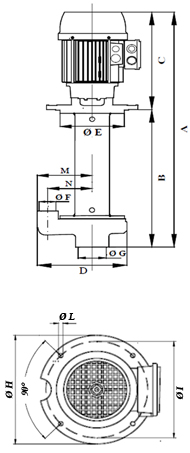

Dimensions and weight

Eintauchpumpen Peripheralrad EPC Abmessungen
Typ Dimensions in mm
A B C Ø D Ø E Ø F G H Ø I Ø L M N kg
AP 80B 620 320 300 280 240 1¼" 2½" 300 270 13 n.4 170 136 37
750 450 43
910 610 46
1160 860 48
AP 90A 675 320 355 280 240 1½" 2½" 300 270 13 n.4 170 136 41
805 450 47
965 610 49
1215 860 51
AP 90B 675 320 355 280 240 1½" 2½" 300 270 13 n.4 170 136 43
805 450 49
965 610 51
1215 860 53
AP 100A 700 320 380 280 240 1½" 2½" 300 270 13 n.4 170 136 48
830 450 54
990 610 56
1240 860 58
AP 112A 730 320 410 280 240 1½" 2½" 300 270 13 n.4 170 136 59
860 450 65
1020 610 67
1270 860 69
AP 112B 730 320 410 280 240 2" 2½" 300 270 13 n.4 170 136 61
860 450 67
1020 610 69
1270 860 71

Installation

Eintauchpumpe Behältereinbauschema TYP AP

Subject to change!
