Linn-Pumpen GmbH

Service Pump FLMU 219

Self-priming service and workshop pump for wide range of applications. Filling and refilling of pressure systems, cooling circuits, refrigerating machines and closed circuits. The pumps are equipped with a pre-set pressure relief valve.





Download PDF catalog Download Service Pump - FLMU 219

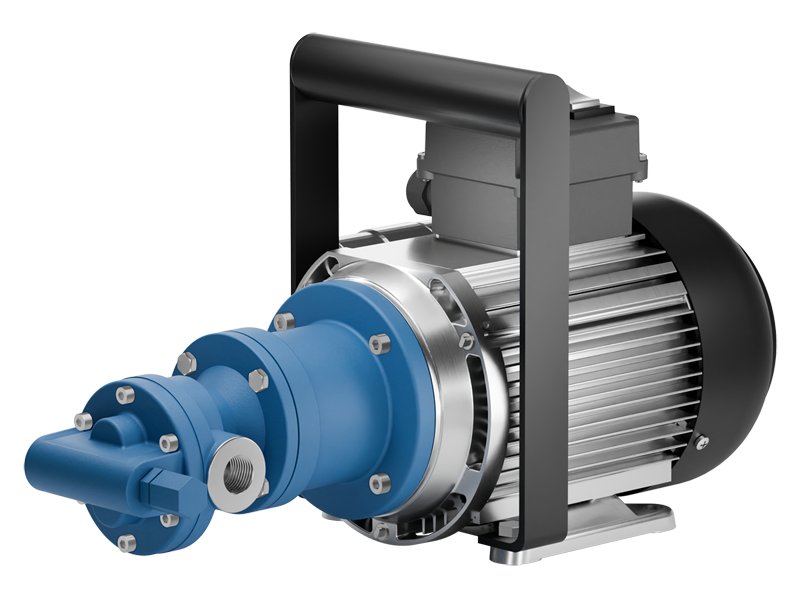

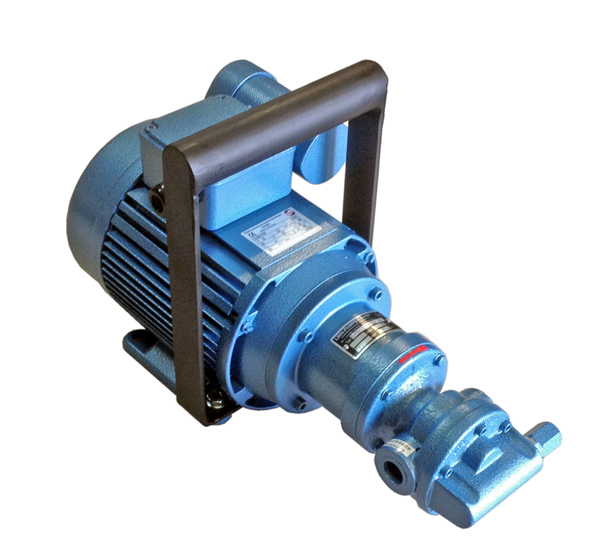

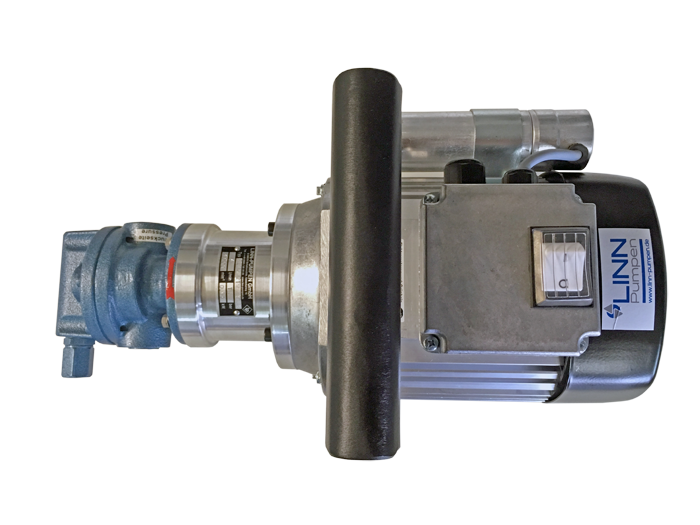

Service Pump - FLMU 219

Pre-set pressure relief valve 2-20 bar
Flow rate max. 4 l/min
Pump pressure up to 20 bar
Viscosity up to 1500 mm²/s
Suction - discharge connection G 1/2"
Weight approx. 16 kg
Pump incl. motor, handle and switch (Cable and plug not included)

Rated power P2 370 W
Voltage 230V - 50Hz
rpm ca. 900min-1
Nominal current 2,9 A
Protection class IP54
Gear-Pumps Series D

Materials

Components Material on Request
casing and cover Cast Iron - EN-GJL-250 - (GG25) ductile cast iron (GGG40), Stainless steel
shaft Steel Stainless steel
gears Steel, hardened and grinded Stainless steel, PEEK
bearing bushes composite bearings Stainless steel
shaft seal Sealing ring NBR FPM, PTFE, GLRD, packing gland

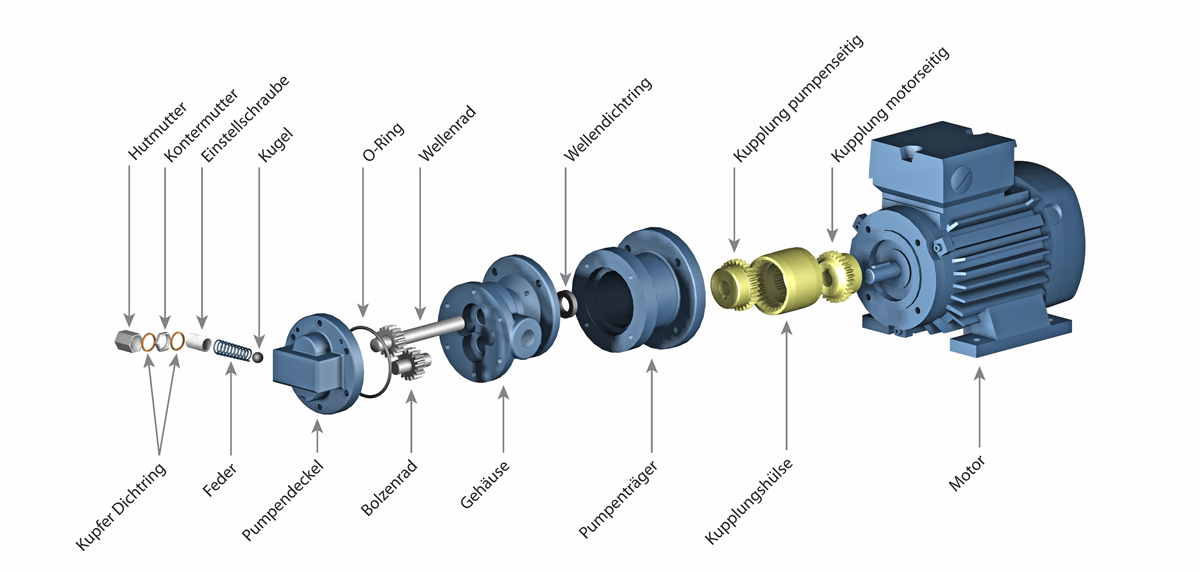

Service Pumpe FLMU219 spare Parts


Subject to change!
Die Firma Linn-Pumpen GmbH übernimmt keine Haftung für Folgeschäden, welche aus evtl. fehlerhaften Informationen resultieren.
