Gear pumps with integrated pressure relief valve (F..U/DU 1 to F..U/DU 5)

The gear pumps types F, D, FLM, FKM, FOM, FAM are optionally available with pressure relief valve. Add *U* in the type designation of the pump version with circulation valve in the pump head. (FU, DU, FLMU, FKMU, FAMU, FOMU)

Gear pumps with spring-loaded circulation valve in the pump head, the pressure relief valve with internal circulation may only be used for short-term pressure limitations.





Download PDF catalog DownloadGear pumps with integrated pressure relief valve

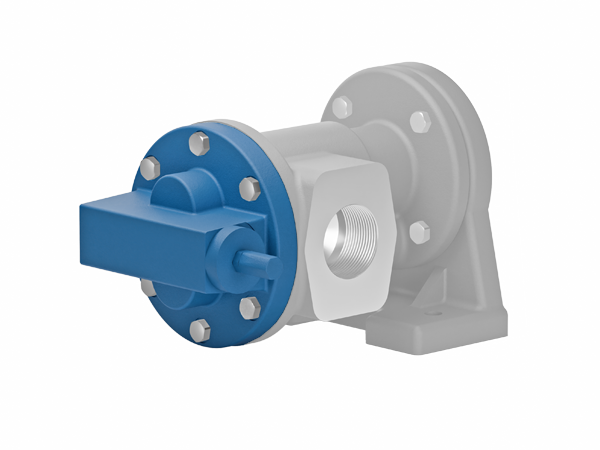

Zahnradflanschpumpen Typ F590Without pressure relief valve, with pressure relief valve (from left to right)

Zahnradflanschpumpen Drehrichtung Baureihe F

Adjustment range

F..U/DU1-3 (up to 20 bar) Gear Pumps Size 1 to 3
Pressure ranges and possible presettings of the opening pressure
(I) 2-10 bar
(II) 5-15 bar
(III) 10-20 bar

F..U/DU4-5 (up to 10 bar) Gear Pumps Size 4 & 5
Pressure ranges and possible presettings of the opening pressure
(I) 2-6 bar
(II) 5-10 bar


Dimensions

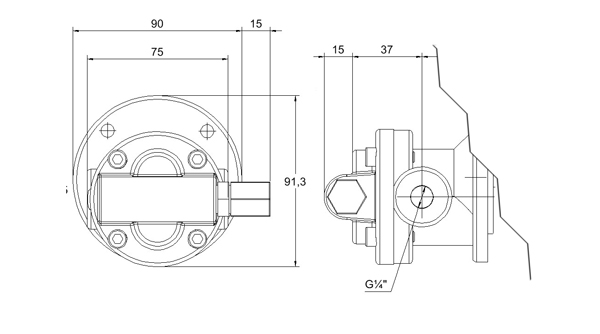

F…U 1-06 bis F…U 17

Zahnradflanschpumpe Abmessungen F1-017-F17

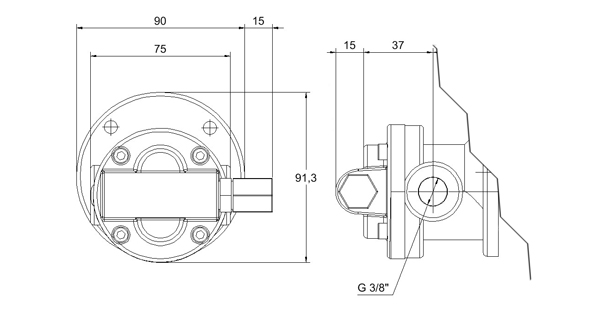

F…U 110

Zahnradflanschpumpe Abmessungen F110

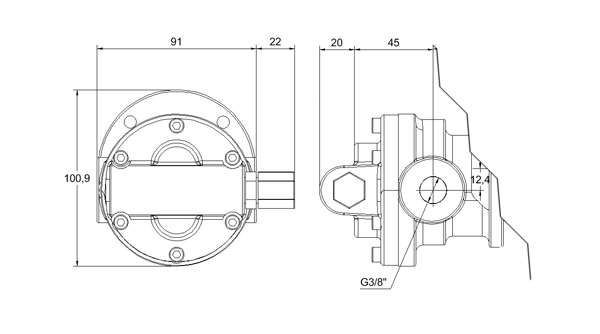

F…U 210 bis F…U 214

Zahnradflanschpumpe Abmessungen F210 bis F214

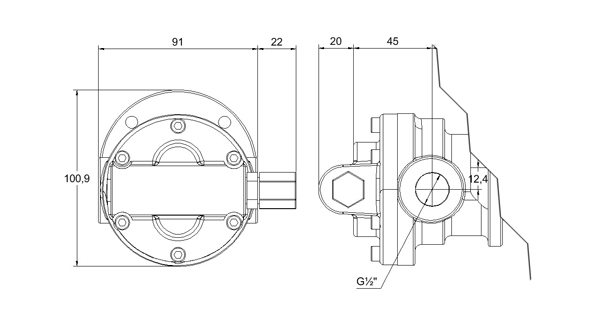

F…U 219

Zahnradflanschpumpe Abmessungen F219

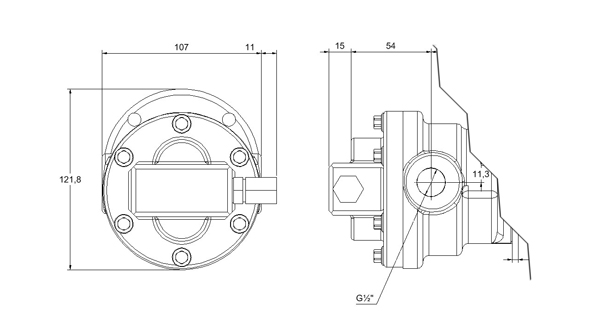

F…U 310 bis F…U 323

Zahnradflanschpumpe Abmessungen F310-F323

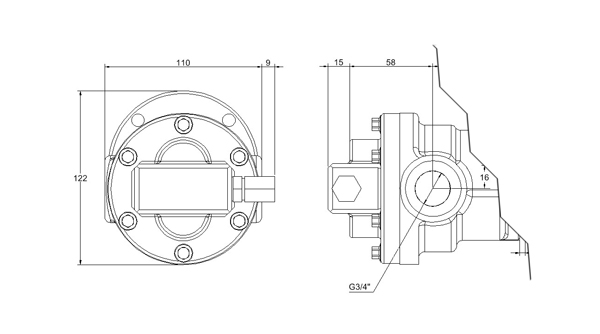

F…U 328 bis F…U 333

Zahnradflanschpumpe Abmessungen F310-F323 lange Welle

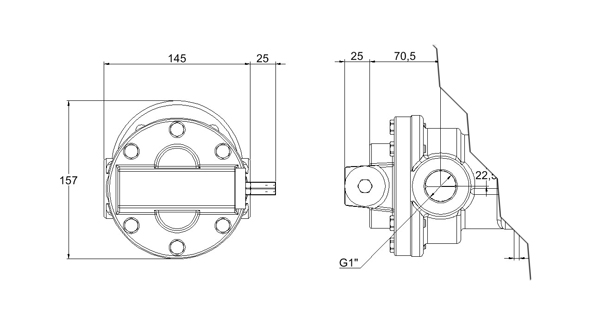

F…U 422 bis F…U 438

Zahnradflanschpumpe Abmessungen F422 bis F438

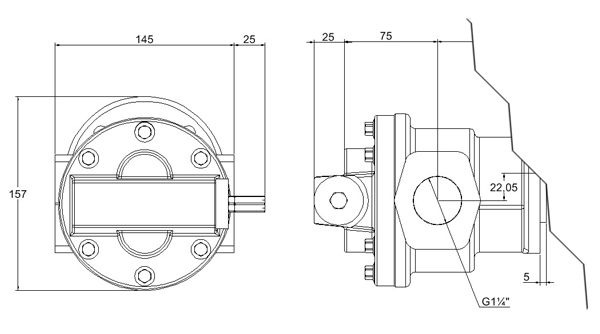

F…U 545 bis F…U 556

Zahnradflanschpumpe Abmessungen F545 bis F556

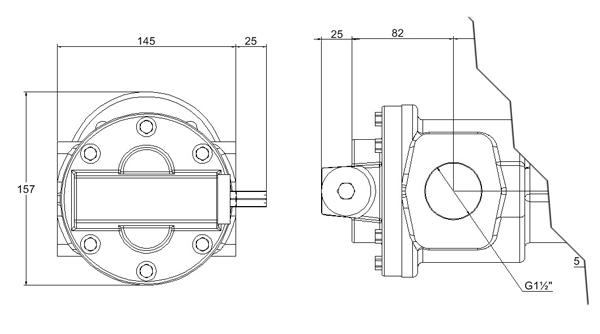

F…U 570 bis F…U 590

Zahnradflanschpumpe Abmessungen F545 bis F556 mit SAE-Flansch
